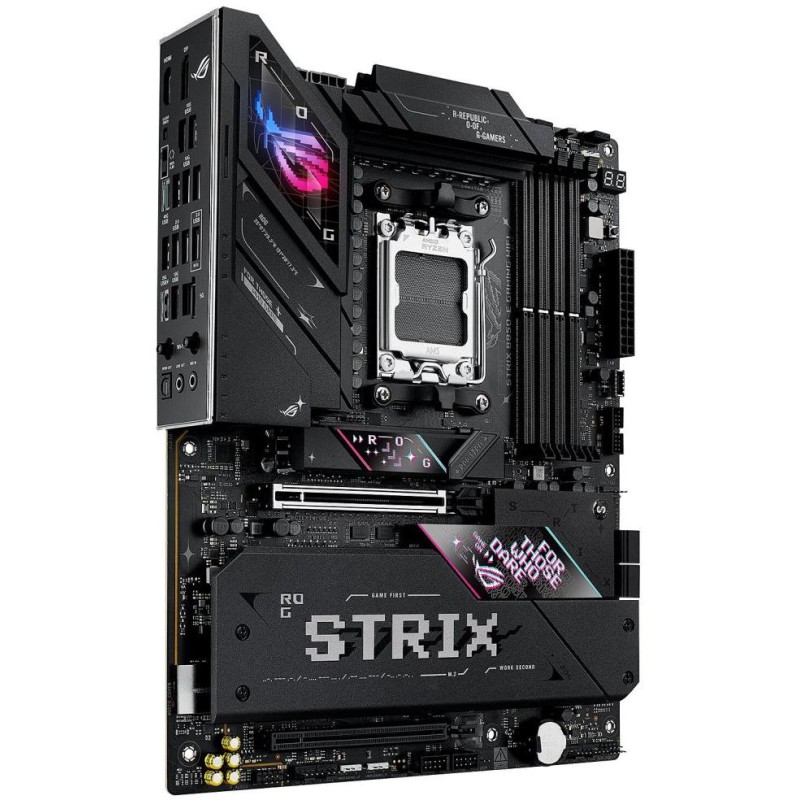

ASUS ROG STRIX B850-E GAMING WIFI / B850 / AM5 / DDR5 / DP / USB-C / 5x M.2 / WiFi / ATX

Description

ASUS ROG STRIX B850-E GAMING WIFI

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 9000/ 8000/ 7000 series processors (Socket AM5)

Chipset

AMD B850

Memory

4× DDR5 memory slots, support up to 256 GB

DDR5 support up to 8000+ MT/s (OC)

Dual-channel memory architecture

ECC and non-ECC support, unbuffered

Support On-Die ECC function

Support for AMD Extended Profiles for Overclocking (EXPO)

ASUS Enhanced Memory Profile (AEMP) support

Slots

AMD Ryzen 9000 and 7000 series

1× PCIe 5.0 x16 slot (supports x16/x8 mode)

AMD Ryzen 8000 series

1× PCIe 4.0 x16 slot (supports x8/x4 mode)

AMD B850 chipset

1× PCIe 4.0 x16 slot (supports x4 mode)

Graphic arts

1× DisplayPort, supporting max. resolution 8K at 30 Hz (according to DP 1.4)

1× HDMI, supporting max. resolution 4K at 60 Hz (according to HDMI 2.1)

1× USB4 (USB-C) port, supporting max. resolution 4K at 60 Hz (according to DisplayPort 1.4)

Storage

AMD Ryzen 9000 and 7000 series

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 5.0 x4 mode)

1× M.2 slot, M Key, for units of type 2242/2260/2280/22110 (PCIe 5.0 x4 mode)

1× M.2 slot, M Key, for type 2280 units (PCIe 5.0 x4 mode)

AMD Ryzen 8000 series

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)

AMD B850 chipset

2× M.2 slot, M Key, for type 2280 units (PCIe 4.0 x4 mode)

4× SATA 6Gb/s

AMD RAIDXpert2 support

AMD Ryzen 9000 series

RAID 0, RAID 1, RAID 5 and RAID 10 support

AMD Ryzen 8000 series

RAID 0, RAID 1 support

AMD Ryzen 7000 series

RAID 0, RAID 1 and RAID 10 support

USB

1× USB4 (USB-C) port on the back panel

1× USB-C 3.2 Gen2x2 port on the back panel

6× USB 3.2 Gen2 (USB 3.1) ports on the back panel

1× USB-C 3.2 Gen2 (USB 3.1) port available via internal USB connector

2× USB 3.2 Gen1 (USB 3.0) ports available via internal USB connector

8× USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

ROG SupremeFX ALC4080 Codec

7.1-channel Surround Sound High Definition Audio

SupremeFX Shielding technology

Savitech SV3H712 AMP

120 dB SNR playback, 110 dB SNR recording

S/PDIF output support

HIND

1× Realtek 5Gigabit LAN controller

ASUS LANGuard

WLAN/Bluetooth

2×2 Wi-Fi 7 (802.11be)

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

Transfer speed up to 6.5 Gbps

Bluetooth 5.4

Internal connectors

1× 24pin ATX main power connector

2× 8pin +12V power connector

4× SATA 6Gb/s

5× M.2 slots, M Key

1× USB-C 3.2 Gen2 (USB 3.1)

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1)

2x USB 2.0 connector (supports 4x USB 2.0)

1× 4pin CPU fan connector

1× 4pin optional fan connectorCPU core

1× 4pin water cooling pump connector

5× 4pin chassis fan connector

3× addressable RGB LED strip connector

1× CPU Over Voltage jumper

1× front panel audio connector

1× Power button

1× 10-1pin system board connector

1× temperature sensor connector

Rear panel ports

1× USB4 (USB-C)

1× USB-C 3.2 Gen2×2

6× USB 3.2 Gen2 (USB 3.1 Gen2)

4× USB 2.0

1× DisplayPort

1× HDMI

2× Wi-Fi antenna connector

1× RJ-45

2× audio jacks

1× optical S/PDIF output

1× BIOS Flashback button

1× Clear CMOS button

Dimensions

30.5 × 24.4 cm

ATX format
