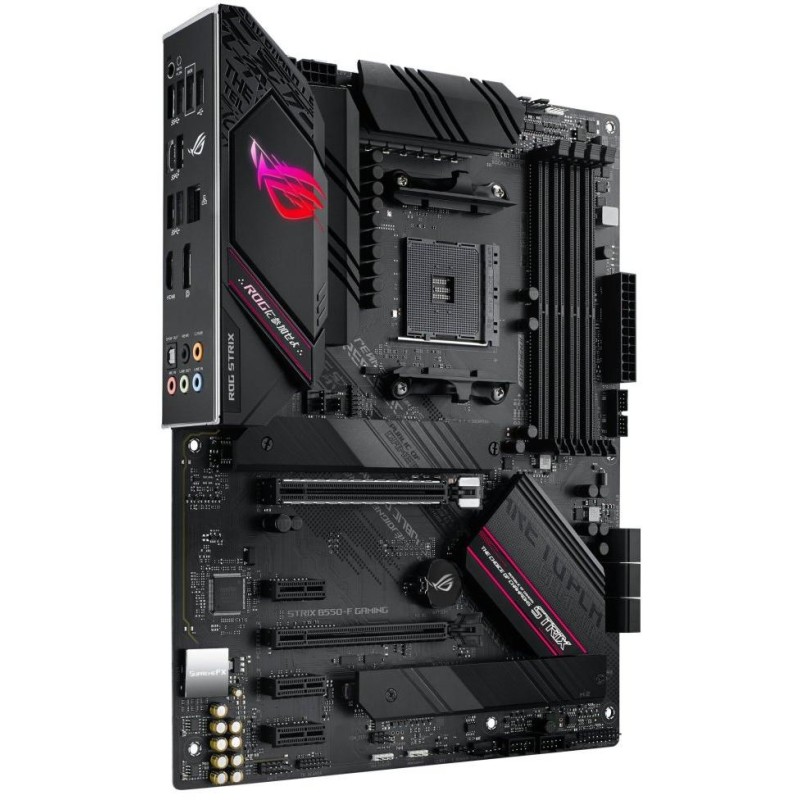

ASUS ROG STRIX B550-F GAMING / B550 / AM4 / 4x DIMM / M.2 / DP / HDMI / ATX

Description

ASUS ROG STRIX B550-F GAMING

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 3rd generation and higher processors (AM4 socket)

Does not support Ryzen 5 3400G and Ryzen 3 3200G processors

Chipset

AMD B550

Memory

4 x DDR4 memory slots, support up to 128 GB

Support DDR4 5100 (OC)/ 4800 (OC)/ 4600 (OC)/ 4466 (OC)/ 4400 (OC)/ 4266 (OC)/ 4133 (OC)/ 4000 (OC)/ 3866 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3333 (OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz

Ryzen 3rd Gen CPU supports DDR4 4600 (OC)/ 4400 (OC)/ 4133 (OC)/ 4000 (OC)/ 3866 (OC)/ 3600 (OC)/ 3466 (OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz

Support for non-ECC DIMMs, unbuffered memory

ECC DIMM support, unbuffered

Dual-channel memory architecture

Graphic arts

Onboard graphics outputs are only functional when used with AMD Ryzen processors with integrated Radeon Vega graphics

1 x DisplayPort port

1 x HDMI port, supporting max. resolution 4096 x 2160 at 60 Hz

Multi-GPU

Support for AMD 2-Way CrossFire technology

Slots

1 x PCIe 3.0 x16 slot

Ryzen 3rd Gen CPU supports PCIe 4.0

1 x PCIe 3.0 x16 slot (supports x4 mode)

3 x PCIe 3.0 x1 slots

Storage

AMD CPU

1 x M.2 slot, M Key, for drives type 2242/2260/2280/22110 (SATA and PCIe 3.0 x4 mode)

Ryzen 3rd gen CPU supports SATA and PCIe 4.0 x4 mode

AMD B550 chipset

1 x M.2 slot, M Key, for drives type 2242/2260/2280/22110 (SATA and PCIe 3.0 x4 mode)

6 x SATA 6Gb/s

RAID 0, RAID 1 and RAID 10 support

USB

1 x USB 3.2 Gen2 (USB 3.1) Type-C port on the back panel

1 x USB 3.2 Gen2 (USB 3.1) port on the back panel

6 x USB 3.2 Gen1 (USB 3.0) ports (4 ports on the back panel, 2 ports available via internal USB connector)

6 x USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

ROG SupremeFX S1220A Codec

8-channel High Definition Audio

S/PDIF output support

HIND

1 x Intel I225-V 2.5Gigabit LAN controller

ASUS LANGuard support

Internal connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

2 x M.2 slots, M Key

6 x SATA 6Gb/s connector

1 x CPU fan connector

1 x optional CPU fan connector

1 x AIO_PUMP water pump connector

3 x system fan connector

2 x Aura RGB LED strip connector

1 x addressable Aura RGB LED strip connector

1 x front panel connector

1 x front panel audio connector

1 x USB 3.2 Gen1 (USB 3.0) connector (supports 2 x USB 3.2 Gen1 port)

2 x USB 2.0 connector (supports 4 x USB 2.0 port)

1 x temperature sensor connector

1 x Thunderbolt connector

1 x Clear CMOS jumper

Rear panel connectors

1 x HDMI

1 x DisplayPort

1 x USB 3.2 Gen2 (USB 3.1) Type C

1 x USB 3.2 Gen2 (USB 3.1)

4 x USB 3.2 Gen1 (USB 3.0)

2 x USB 2.0

1 x RJ-45

1 x optical S/PDIF output

1 x Flash BIOS button

5 x audio jacks

Dimensions

30.5 x 24.4 cm

ATX format
