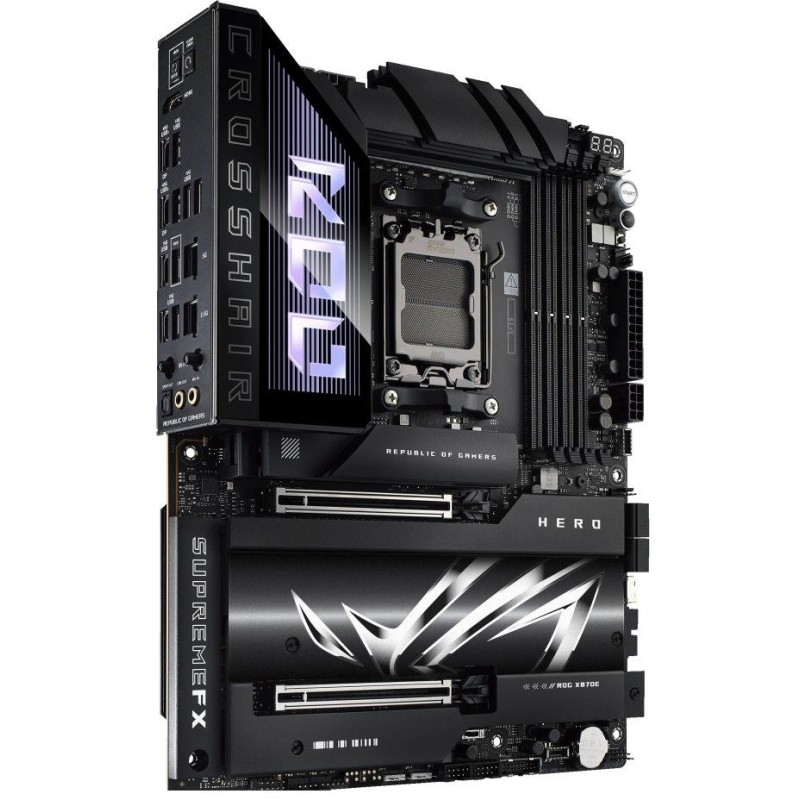

ASUS ROG CROSSHAIR X870E HERO / X870E / AM5 / 4x DDR5 / HDMI / USB4 / M.2 / ATX

Description

ASUS ROG CROSSHAIR X870E HERO

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 7000, 8000 and 9000 series processors (Socket AM5)

Chipset

AMD X870E

Memory

4× DDR5 memory slots, support up to 192 GB

DDR5 8200+ MT/s(OC) support with Ryzen 9000 series processors

DDR5 8600+ MT/s(OC) support with Ryzen 8000 series processors

DDR5 8000+ MT/s(OC) support with Ryzen 7000 series processors

Dual-channel memory architecture

ECC and non-ECC support, unbuffered

Support On-Die ECC function

Support for AMD EXtended Profiles for Overclocking (EXPO)

ASUS Enhanced Memory Profile (AEMP)

Slots

AMD Ryzen 9000 & 7000

2× PCIe 5.0 x16 slot with Q-Release Slim (supports x16 or x8/x8 or x8/x4/x4 mode)

AMD Ryzen 8700 & 8600 & 8400

2x PCIe 4.0 x16 slot with Q-Release Slim

AMD Ryzen 8500 & 8300

2x PCIe 4.0 x16 slot with Q-Release Slim

Some PCIe, M.2 slots and SATA connectors share data lines and will not work when installed simultaneously. For more information, please visit the manufacturer’s website.

Graphic arts

1× HDMI port, supporting max. resolution 4K at 60 Hz (according to HDMI 2.1)

2× USB4 (USB-C) ports, supporting max. resolution 4K at 60 Hz (according to DisplayPort 1.4a)

Storage

AMD Ryzen 9000 & 7000

3× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 5.0 x4 mode)

AMD Ryzen 8000

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)

AMD X870E chipset

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)

1× M.2 slot, M Key, for type 2280 units (PCIe 4.0 x4 mode)

The SlimSAS slot supports PCIe 4.0 x4 mode

4 x SATA 6Gb/s ports

AMD RAIDXpert2 support

RAID 0, RAID 1, RAID 5, and RAID 10 support for both SATA and PCIe drives (RAID 5 supported only with 9000 series processors)

Some PCIe, M.2 slots and SATA connectors share data lines and will not work when installed simultaneously. For more information, please visit the manufacturer’s website.

USB

2× USB4 (USB-C) ports on the back panel

6× USB 3.2 Gen2 (USB 3.1) ports on the back panel

2× USB-C 3.2 Gen2 (USB-C 3.1) ports on the back panel

2× USB-C 3.2 Gen2×2 port available via internal USB connector (1× with 60W PD/QC4+ support)

4× USB 3.2 Gen1 (USB 3.0) ports available via internal USB connector

4× USB 2.0 ports available via internal USB connector

Audio

ROG SupremeFX ALC4082 Codec

7.1 channel High Definition Audio

SupremeFX Shielding technology

ESS ES9219 QUAD DAC

120 dB SNR playback, 110 dB SNR recording

S/PDIF output support

HIND

1× Intel 2.5Gigabit LAN controller

1× Realtek 5Gigabit LAN controller

ASUS LANGuard

WLAN/Bluetooth

2×2 Wi-Fi 7 (802.11be)

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

Transfer speed up to 6.5 Gbps

Bluetooth 5.4

Internal connectors

1× 4pin CPU fan connector

1× 4pin optional fan connectorCPU ilerator

1× 4pin water cooling pump connector

4× 4pin chassis fan connector

1× W_PUMP+ connector

1× 24pin main power connector

2× 8pin +12V power connector

1× 8pin PCIe power connector

5× M.2 slots, M Key

4× SATA 6Gb/s connector

1× SlimSAS connector

2× USB 3.2 Gen1 (USB 3.0) connector (supports 4× USB 3.2 Gen1 ports)

2x USB 2.0 connector (supports 4x USB 2.0 port)

2× USB-C Gen2×2

3× addressable RGB LED strip connector

1× PCIe Mode Alteration switch

1× FlexKey button

1× front panel audio connector

1× ReTry button

1× Start button

1× 10-1pin system board connector

1× temperature sensor connector

1× LN2 Mode jumper

Rear panel ports

2× Wi-Fi antenna connector

2× USB4 (USB-C)

6× USB 3.2 Gen2 (USB 3.1)

2x USB-C 3.2 Gen2 (USB-C 3.1)

1× HDMI

2× RJ-45

2× audio jacks

1× optical S/PDIF

1× BIOS Flashback button

1× Clear CMOS button

Dimensions

30.5 × 24.4 cm

ATX format
