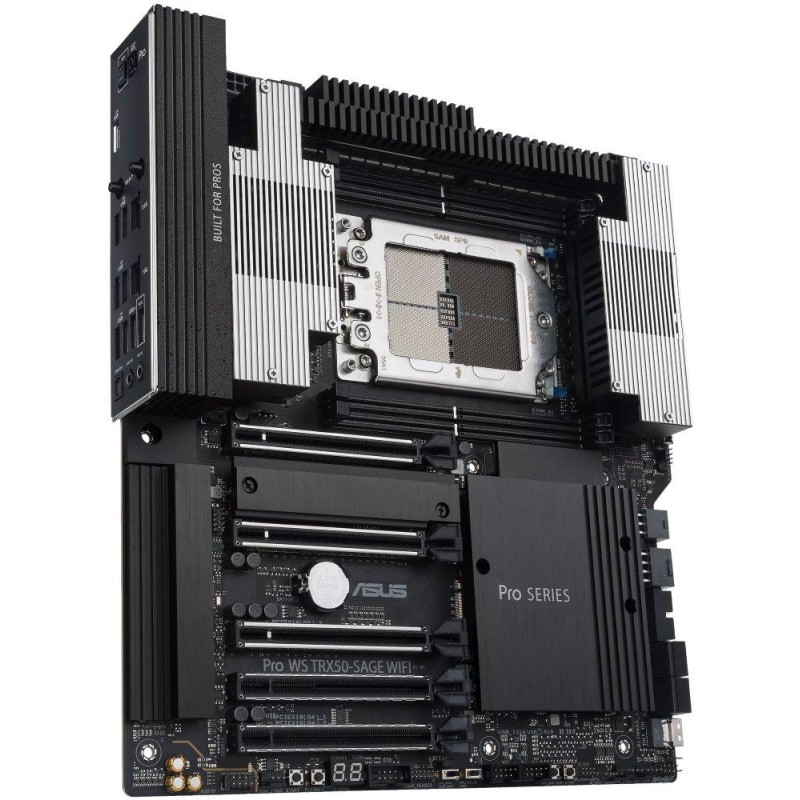

ASUS Pro WS TRX50-SAGE WIFI / TRX50 / sTR5 / 4x DDR5 / M.2 / Wi-Fi / USB Type-C / CEB Form Factor

Description

ASUS Pro WS TRX50-SAGE WIFI

CPU

Support for AMD Ryzen Threadripper PRO 7000WX and 7000 series processors (TR5 socket)

Chipset

AMD TRX50

Memory

4× DDR5 memory slots, support up to 1024 GB

Support DDR5 4800/5600/6000/6400/6800/7200/7600/8000 MHz

Quad-channel memory architecture

ECC memory support

AMD EXPO Support

Extreme Memory Profile (XMP) support

Slots

2× PCIe 5.0 x16 slots

1× PCIe 5.0 x16 slot (supports x8 mode)

1× PCIe 4.0 x16 slot

1× PCIe 4.0 x16 slot (supports x4 mode)

Storage

AMD TRX50 chipset

1× SlimSAS slot, for NVMe drives (PCIe 4.0 x4 mode)

4× SATA 6Gb/s ports

1× M.2 slot, M Key, for type 2280 units (PCIe 4.0 x4 mode)

AMD Ryzen Threadripper PRO

2× M.2 slot, M Key, for units of type 2242/2260/2280 (PCIe 5.0 x4 mode)

Supports AMD RAIDXpert2 technology (RAID 0, RAID 1, RAID 5 and RAID 10 for both SATA and PCIe drives)

USB

2× USB-C 3.2 Gen2x2 ports (1 port on the back panel, 1 port available via internal USB connector)

6× USB 3.2 Gen2 (USB 3.1) ports on the back panel

2× USB 3.2 Gen1 (USB 3.0) ports available via internal USB connector

6× USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek ALC1220P Codec

5.1-channel High Definition Audio

120 dB SNR playback, 113 dB SNR recording

S/PDIF support

HIND

1× Marvell AQtion 10Gigabit LAN controller

1× Intel I226-LM 2.5Gigabit LAN controller

WLAN/Bluetooth

AMD Wi-Fi 7

Wi-Fi 802.11be

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

Max. transfer rate 2.8 Gbps

Bluetooth 5.4

Internal connectors

1× 4pin CPU fan connector

1× 4-pin optional CPU fan connector

1× water cooling pump fan connector

4× 4pin chassis fan connector

2× 4pin VRM fan connector

2× 24pin main power connector

2× 8pin +12V power connector

2× 8pin PCIe CPU power connector

1× 8pin PCIe power connector

1× 6pin PCIe power connector

3× M.2 slots, M Key

4× SATA 6Gb/s ports

1× SlimSAS port

1× USB-C 3.2 Gen2x2 connector

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1x management connector (BMC)

1× serial port connector

1× USB 4.0 connector

1× FlexKey button

1× front panel audio connector

7× ProbeIt measuring points

1× Start button

1× Safe Boot button

1× ReTry button

1× LN2 mode jumper

1× slow mode switch

1× 14-1pin SPI TPM connector

1× 10-1pin system board connector

1× chassis opening detection connector

1× temperature sensor connector

Rear panel ports

1× USB-C 3.2 Gen2x2

6x USB 3.2 Gen2 (USB 3.1) ports

2× USB 2.0

2× Wi-Fi antenna connector

2× RJ-45

2× audio jacks

1× optical S/PDIF output

1× Clear CMOS button>
1× BIOS Flashback button

Dimensions

30.5 × 28 cm

ATX (CEB) format
