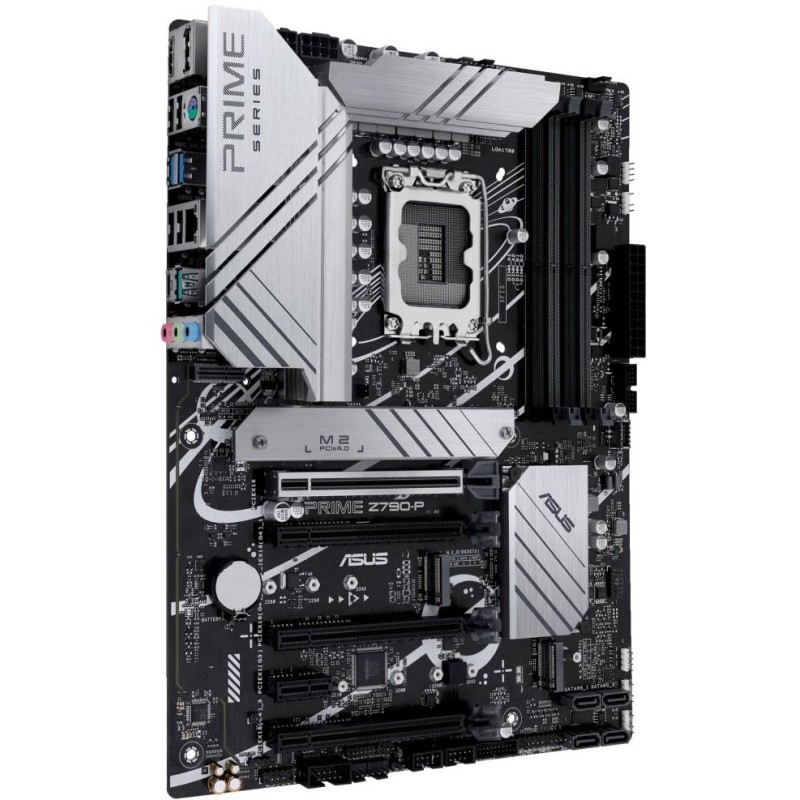

ASUS PRIME Z790-P / Intel Z790 / LGA1700 / 4x DDR5 / 3x M.2 / HDMI / DP / USB-C /ATX

Description

ASUS PRIME Z790-P

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for 13th and 12th generation Intel Core/ Pentium Gold/ Celeron processors

LGA1700 socket

Chipset

Intel Z790

Memory

4x DDR5 memory slots, support up to 192 GB

Support DDR5 7200+ (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz

Dual-channel memory architecture

Support non-ECC, unbuffered memory

Support On-Die ECC function

Intel Extreme Memory Profile (XMP) support

OptiMem II support

Slots

Intel CPU

1x PCIe 5.0 x16 slot

Intel Z790 chipset

3x PCIe 4.0 x16 slot (supports x4 mode)

1x PCIe 3.0 x1 slot

Graphic arts

1x HDMI port, supporting max. resolution 4K at 60 Hz

1x DisplayPort port, supporting max. resolution 4K at 60 Hz

Storage

Intel CPU

1x M.2 slot, M Key, for units of type 2242/2260/2280/22110 (PCIe 4.0 x4 mode)

Intel Z790 chipset

4x SATA 6Gb/s ports

1x M.2 slot, M Key, for units of type 2242/2260/2280 (PCIe 4.0 x4 mode)

1x M.2 slot, M Key, for 2242/2260/2280/22110 type units (SATA and PCIe 4.0 x4 mode)

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA drives

RAID 0, RAID 1, RAID 5 and RAID 10 support for PCIe drives

Intel Rapid Storage technology support

USB

1x USB 3.2 Gen2x2 Type-C port on the back panel

1x USB 3.2 Gen2 Type C port available via internal USB connector

1x USB 3.2 Gen2 type A port on the back panel

6x USB 3.2 Gen1 (USB 3.0) ports (2 ports on the back panel, 4 ports available via internal USB connectors)

8x USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek Audio Codec

7.1 channel High Definition Audio

HIND

1x Realtek 2.5Gigabit LAN controller

Internal connectors

1x 24-pin ATX main power connector

1x 8-pin 12V power connector

1x 4-pin 12V power connector

4x SATA 6Gb/s connector

3x M.2 slots, M Key

1x M.2 slot, E key for Wi-Fi module (not included)

1x USB 3.2 Gen2 Type-C front panel connector

2x USB 3.2 Gen1 (USB 3.0) connector (supports 4x USB 3.2 Gen1 port)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1x 4-pin CPU fan connector

1x 4-pin optional CPU fan connector

1x 4-pin water cooling pump connector

3x 4-pin chassis fan connector

3x addressable RGB LED strip connector

2x Aura RGB LED strip connector

1x Clear CMOS jumper

1x serial port connector

1x front panel audio connector

1x S/PDIF output connector

1x SPI TPM connector

1x system panel connector

1x Thunderbolt (USB4) connector

Rear panel ports

1x PS/2 keyboard and mouse combo port

1x HDMI

1x DisplayPort

4x USB 2.0

2x USB 3.2 Gen1 (USB 3.0)

1x USB 3.2 Gen2 (USB 3.1 Gen2)

1x USB 3.2 Gen2x2 Type-C

1x RJ-45

3x audio jacks

Dimensions

30.5 x 23.4 cm

ATX format
