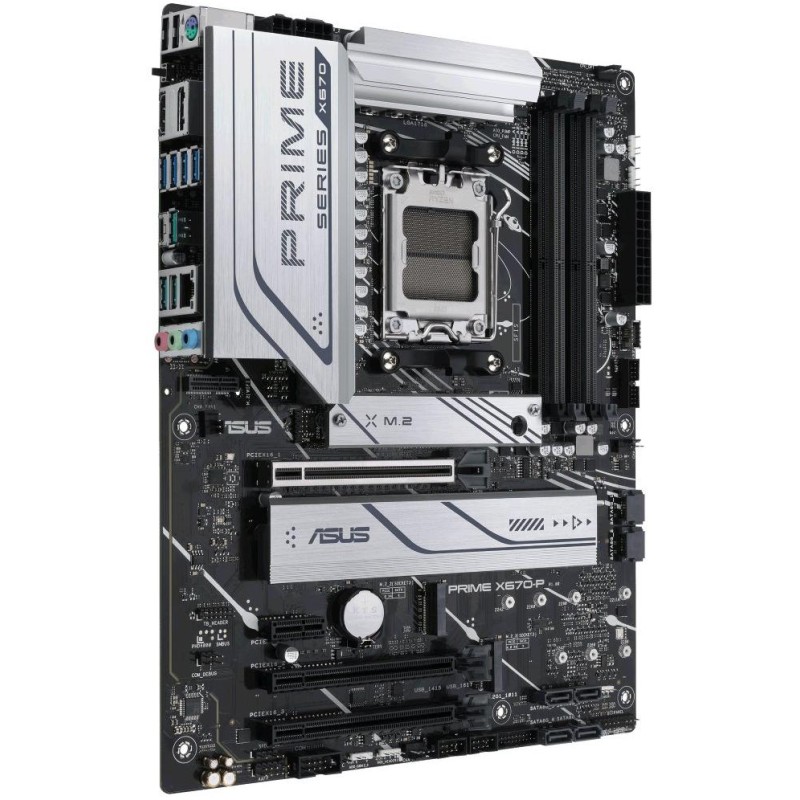

ASUS PRIME X670-P-CSM / AM5 / X670 / 4x DDR5 / M.2 / USB-C / HDMI / DP / ATX

Description

ASUS PRIME X670-P-CSM

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 7000/8000 series processors (Socket AM5)

Chipset

AMD X670

Memory

4× DDR5 memory slots, support up to 192 GB

Support DDR5 7600+ (OC)/ 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200/ 5000/ 4800 MHz

Dual-channel memory architecture

ECC and non-ECC support, unbuffered

Support On-Die ECC function

Support for AMD EXtended Profiles for Overclocking (EXPO)

OptiMem II support

Slots

AMD Ryzen 7000

1× PCIe 4.0 x16 slot

AMD Ryzen 8000

1× PCIe 4.0 x16 slot (supports x8/x4 mode)

AMD X670 chipset

2× PCIe 4.0 x16 slot (supports x4 mode)

1× PCIe 3.0 x1 slot

Graphic arts

1× HDMI port, supporting max. resolution 4K at 60 Hz

1× DisplayPort port, supporting max. resolution 8K at 60 Hz

Storage

AMD Ryzen 7000

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 5.0 x4 mode)

1× M.2 slot, M Key, for units of type 2242/2260/2280/22110 (PCIe 4.0 x4 mode)

AMD Ryzen 8000

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)

1× M.2 slot, M Key, for units of type 2242/2260/2280/22110 (PCIe 4.0 x4/x2 mode)

AMD X670 chipset

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)

6 x SATA 6Gb/s
AMD RAIDXpert2 support

RAID 0, RAID 1, and RAID 10 support for SATA and NVMe drives

USB

1× USB-C 3.2 Gen2×2 on the back panel

3x USB 3.2 Gen2 (USB 3.1) on the back panel

8× USB 3.2 Gen (USB 3.0) (4 ports on the back panel, 4 ports available via internal USB connectors)

6× USB 2.0 (2 ports on the back panel, 4 ports available via internal USB connector)

1× USB-C 3.2 Gen1 available via internal USB connector

Audio

Realtek Audio Codec

7.1 channel High Definition Audio

HIND

1× Realtek 2.5Gigabit LAN controller

Internal connectors

1× 24pin ATX main power connector

1× 8pin 12V power connector

1× 4pin 12V power connector

6× SATA 6Gb/s connector

3× M.2 slots, M Key

1× M.2 slot, E key for Wi-Fi module (not included)

1× USB-C 3.2 Gen1 front panel connector

2× USB 3.2 Gen1 (USB 3.0) connector (supports 4× USB 3.2 Gen1 ports)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1× 4pin CPU fan connector

1× 4-pin optional CPU fan connector

1× 4pin water cooling pump connector

3× 4-pin chassis fan connector

3× addressable RGB LED strip connector

2x Aura RGB LED strip connector

1× Clear CMOS jumper

1× serial port connector

1× front panel audio connector

1× S/PDIF output connector

1× SPI TPM connector

1x system panel connector

1× Thunderbolt (USB4) connector

Ports on the back panel

1× PS/2 keyboard and mouse combo port

1× USB-C 3.2 Gen2×2

3x USB 3.2 Gen2 port (USB 3.1)

4x USB 3.2 Gen1 port (USB 3.0)

2× USB 2.0

1× DisplayPort

1× HDMI

1× RJ-45

1× BIOS Flashback button

3× audio jacks

Dimensions

30.5 × 24.4 cm

ATX format
