ASUS PRIME B760M-K D4 / Intel B760 / LGA1700 / 2x DDR4 / 2x M.2 / HDMI / VGA / mATX

Description

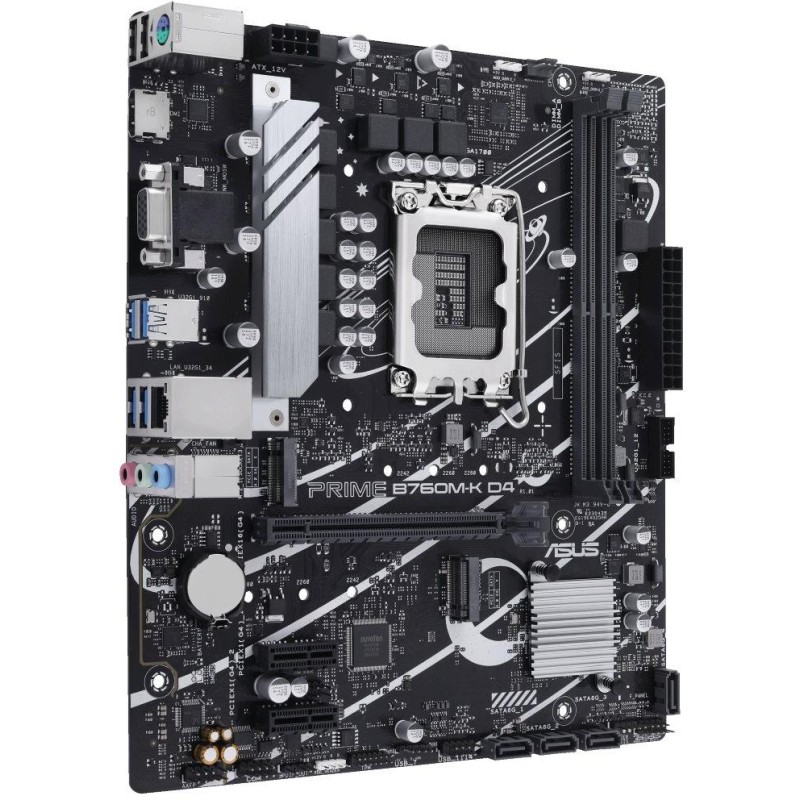

ASUS PRIME B760M-K D4

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for 12th and 13th generation Intel Core/ Pentium/ Celeron processors (LGA1700 socket)

Chipset

Intel B760

Memory

2x DDR4 memory slots, support up to 64 GB

Support DDR4 5333 (OC)/ 5066 (OC)/ 5000 (OC)/ 4800 (OC)/ 4600 (OC)/ 4400 (OC)/ 4266 (OC)/ 4000 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3400 (OC)/ 3333 (OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz

Dual-channel memory architecture

Support non-ECC, unbuffered memory

Intel Extreme Memory Profile (XMP) support

Slots

Intel CPU

1x PCIe 4.0 x16 slot

Intel B760 chipset

2x PCIe 4.0 x1 slots

Graphic arts

1x HDMI port, supporting max. resolution 4K at 60 Hz

1x VGA port

Storage

Intel CPU

1x M.2 slot, M Key, for units of type 2242/2260/2280 (PCIe 4.0 x4 mode)

Intel B760 chipset

1x M.2 slot, M Key, for units of type 2242/2260/2280 (PCIe 4.0 x4 mode)

4x SATA 6Gb/s ports

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA drives

Intel Rapid Storage technology support

USB

6x USB 3.2 Gen1 (USB 3.0) type A ports (4 ports on the back panel, 2 ports available via internal USB connector)

5x USB 2.0 ports (2 ports on the back panel, 3 ports available via internal USB connectors)

Audio

Realtek Audio Codec

7.1 channel High Definition Audio

HIND

1x Realtek 2.5Gigabit LAN controller

Internal connectors

1x 24-pin main power connector

1x 8-pin 12V power connector

4x SATA 6Gb/s connector

2x M.2 slots, M Key

1x USB 3.2 Gen1 (USB 3.0) type A connector (supports 2x USB 3.2 Gen1 port)

2x USB 2.0 connector (supports 3x USB 2.0 port)

1x 4-pin CPU fan connector

1x 4-pin chassis fan connector

2x addressable RGB LED strip connector

1x Aura RGB LED strip connector

1x Clear CMOS connector

1x serial port connector

1x front panel audio connector

1x S/PDIF output connector

1x speaker connector

1x SPI TPM connector

1x system panel connector

Rear panel ports

1x HDMI

1x VGA

4x USB 3.2 Gen1 (USB 3.0)

2x USB 2.0

1x RJ-45

3x audio jacks

1x PS/2 keyboard and mouse combo port

Dimensions

24.4 x 21.1 cm

Micro ATX format
