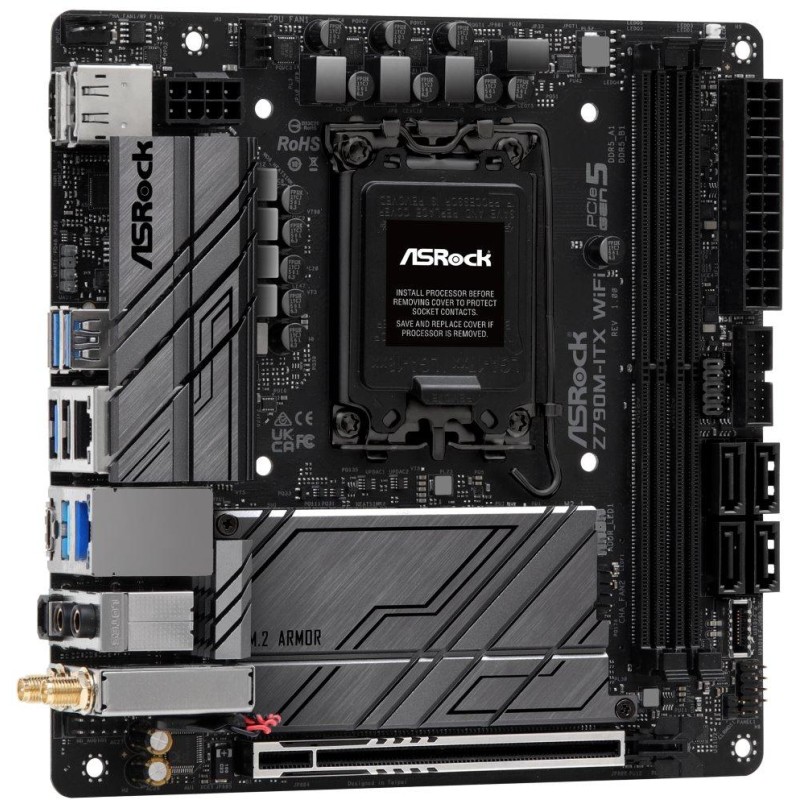

ASRock Z790M-ITX WIFI / Intel Z790 / LGA1700 / 2x DDR5 / 2x M.2 / HDMI / DP / USB-C / WiFi / Mini-ITX

ASRock Z790M-ITX WIFI / Intel Z790 / LGA1700 / 2x DDR5 / 2x M.2 / HDMI / DP / USB-C / WiFi / Mini-ITX

217,52 €

SKU: MotherboardsASROCK-Z790M-ITX-WIF-1700 Category: Tag:

Description

ASRock Z790M-ITX WIFI

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for 12th and 13th generation Intel Core/ Pentium Gold/ Celeron processors

LGA1700 socket

Chipset

Intel Z790

Memory

2x DDR5 memory slots, support up to 96 GB

Supports DDR5 up to 6800+ (OC) MHz

Supports DDR5 5600 MHz natively

Dual-channel memory architecture

Support non-ECC, unbuffered memory

Intel Extreme Memory Profile (XMP) 3.0 support

Slots

1x PCIe 5.0 x16 slot

Graphic arts

1x HDMI port, supporting max. resolution 4K at 60 Hz

1x DisplayPort port, supporting max. resolution 8K at 60 Hz, 5K at 120 Hz

1x eDP port, supporting max. Full HD resolution at 60 Hz

Storage

Intel CPU

1x Hyper M.2 slot, M Key, for 2280 type units (PCIe 4.0 x4 mode)

Intel Z790 chipset

4x SATA 6Gb/s ports

1x Hyper M.2 slot, M Key, for type 2280 units (SATA and PCIe 4.0 x4 mode)

Intel Volume Management Device (VMD) support

RAID 0, RAID 1, and RAID 5 support for M.2 NVMe drives

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA drives

USB

2x USB 3.2 Gen 2×2 Type C port (1 port on the back panel, 1 port available via internal USB connector)

4x USB 3.2 Gen2 Type A ports on the back panel

2x USB 3.2 Gen1 (USB 3.0) ports available via internal USB connector

3x USB 2.0 ports (1 port on the back panel, 2 ports available via internal USB connector)

Audio

Realtek ALC897 Codec

7.1 channel High Definition Audio

Nahimic Audio

HIND

1x Intel I226V 2.5Gigabit LAN controller

1x Intel I219V Gigabit LAN controller

WLAN/Bluetooth

Intel Wi-Fi 6E

Wi-Fi 802.11a/b/g/n/ac/ax

Dual Band (2.4 GHz, 5 GHz, 6 GHz)

MU-MIMO support

Bluetooth

Internal connectors

1x 24-pin ATX main power connector

1x 8-pin 12V power connector

1x eDP connector

1x RGB LED strip connector

1x addressable LED strip connector

1x 4-pin CPU fan/water cooling pump fan connector

2x 4-pin chassis fan connector

1x front panel audio connector

1x USB 2.0 connector (supports 2x USB 2.0 port)

1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)

1x USB 3.2 Gen2x2 Type-C front panel connector

Rear panel ports

2x Wi-Fi antenna connector

1x HDMI

1x DisplayPort

1x optical S/PDIF output

1x USB 3.2 Gen2x2 Type-C

4x USB 3.2 Gen2 Type A

1x USB 2.0

2x RJ-45

2x audio jacks

Dimensions

17 x 17 cm

Mini-ITX format

Additional information

Brand

ASROCK
Model

ASRock
Warranty period for registration number (months)

24
Manufacturer

ASROCK
Warranty length (months)

24
Processed

Approved
Wi-Fi

Yes
RJ-45 (number)

2
Dimensions

170 × 170 mm
Dropshipment - Alza

Yes
USB 2.0 (number)

1
Gigabit LAN

Yes
Wi-Fi standard

802.11a/b/g/n/ac/ax
USB Type C (number)

1
Analog audio input/output (number)

2
HDMI (number)

1
TDP (W)

125
USB 3.1 (number)

4
RAM type

DDR5
Chipset

Intel Z790
Number of memory slots

2
DisplayPort (number)

1
Motherboard format

Mini-ITX
PCI Express X16 (number)

1
RAID controller

Yes
Max RAM size (GB)

96
Processor socket

1700
M.2 port (for expansion cards)

No
SATA III (number)

4
M.2 port (number)

2
Optical audio output (number)

1
Dropshipment - Alza - frozen

Yes
SPDIF optical (number)

1
