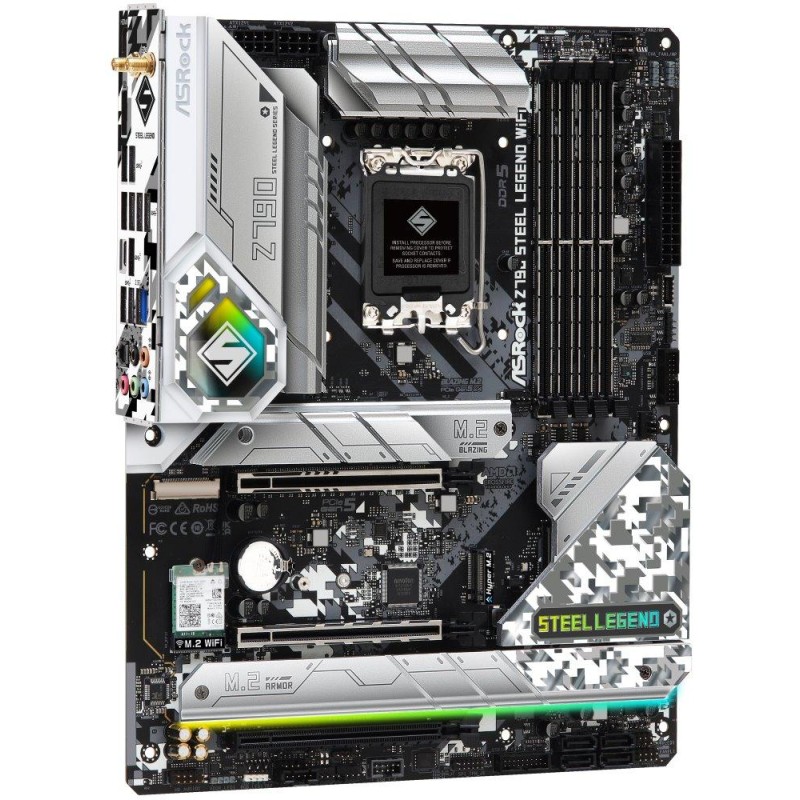

ASRock Z790 Steel Legend WiFi / Intel Z790 / LGA1700 / 4x DDR5 / 5x M.2 / HDMI / DP / USB-C / WiFi / ATX

Description

ASRock Z790 Steel Legend WiFi

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for 13th and 12th generation Intel Core/ Pentium Gold/ Celeron processors

LGA1700 socket

Chipset

Intel Z790

Memory

4x DDR5 memory slots, support up to 192 GB

Supports DDR5 up to 6800+ (OC) MHz

Dual-channel memory architecture

Support non-ECC, unbuffered memory

Intel Extreme Memory Profile (XMP) 3.0 support

Slots

Intel CPU

1x PCIe 5.0 x16 slot

Intel Z790 chipset

1x PCIe 4.0 x16 slot (supports x4 mode)

1x PCIe 3.0 x16 slot (supports x2 mode)

Graphic arts

1x HDMI port, supporting max. resolution 4K at 60 Hz

1x DisplayPort port, supporting max. resolution 8K at 60 Hz, 5K at 120 Hz

1x eDP port, supporting max. Full HD resolution at 60 Hz

Multi-GPU

AMD CrossFire technology support

Storage

Intel CPU

1x Blazing M.2 slot, M Key, for 2260/2280 type units (PCIe 5.0 x4 mode)

1x Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)

Intel Z790 chipset

2x Hyper M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)

1x Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)

8x SATA 6Gb/s ports

Intel Volume Management Device (VMD) support

RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives

RAID 0, RAID 1, and RAID 5 support for M.2 NVMe drives

USB

1x USB 3.2 Gen2x2 Type C port available via internal USB connector

1x USB 3.2 Gen2 type A port on the back panel

1x USB 3.2 Gen2 Type-C port on the back panel

12x USB 3.2 Gen1 (USB 3.0) ports (8 ports on the back panel, 4 ports available via internal USB connectors)

3x USB 2.0 ports available via internal USB connectors

Audio

Realtek ALC897 Codec

7.1 channel High Definition Audio

Nahimic audio

HIND

1x Dragon RTL8125BG 2.5Gigabit LAN controller

WLAN/Bluetooth

Wi-Fi 802.11a/b/g/n/ac/ax

Dual Band (2.4 GHz, 5 GHz, 6 GHz)

MU-MIMO support

Bluetooth

Internal connectors

1x eDP connector

1x SPI TPM connector

1x speaker connector and Power LED

1x RGB LED strip connector

3x addressable LED strip connector

1x 4-pin CPU fan connector

1x 4-pin CPU fan/CPU water cooling fan connector

5x 4-pin chassis fan/CPU water cooling fan connector

1x 24-pin ATX main power connector

2x 8-pin 12V power connector

8x SATA 6Gb/s connector

5x M.2 slots, M Key

1x front panel audio connector

1x 5-pin Thunderbolt AIC connector (supports ASRock Thunderbolt 4 AIC)

2x USB 2.0 connector (supports 3x USB 2.0 port)

2x USB 3.2 Gen1 (USB 3.0) connector (supports 4x USB 3.2 Gen1 port)

1x USB 3.2 Gen2x2 Type-C front panel connector

Rear panel ports

2x Wi-Fi antenna connector

1x HDMI

1x DisplayPort

1x optical S/PDIF output

1x USB 3.2 Gen2 (USB 3.1 Gen2) type A

1x USB 3.2 Gen2 (USB 3.1 Gen2) type C

8x USB 3.2 Gen1 (USB 3.0)

1x RJ-45

5x audio jacks

Dimensions

30.5 x 24.4 cm

ATX format
