ASRock X870E Taichi / AMD X870E / AM5 / 4x DDR5 DIMM / 4x M.2 / HDMI / USB-C / WiFi / EATX

Description

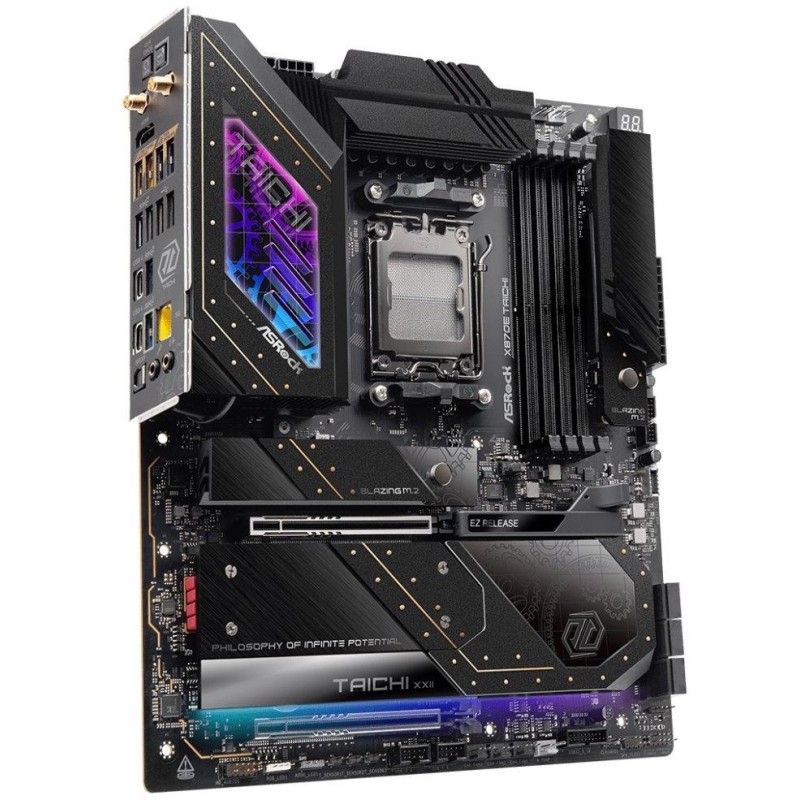

ASRock X870E Taichi

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 9000, 8000 and 7000 series processors (AM5 socket)

Chipset

AMD X870E

Memory

4× DDR5 memory slots, support up to 256 GB

DDR5 support up to 8200+ (OC) MT/s

Dual-channel memory architecture

ECC and non-ECC support, unbuffered

Support for AMD EXtended Profiles for Overclocking (EXPO)

Extreme Memory Profile (XMP) support

Slots

AMD CPU

2× PCIe 5.0 x16 slot (supports x16 or x8/x8 mode)

PCIe slots operate in PCIe 5.0 x16 mode with Ryzen 9000/7000 series processors, in PCIe 4.0 x8 mode with 8000 series processors (Phoenix 1), and in PCIe 4.0 x4 mode with 8000 series processors (Phoenix 2)

Graphic arts

1× HDMI port, supporting max. resolution 4K at 120 Hz

2× USB4 (USB-C) ports, supporting max. resolution 8K at 30 Hz

The image can only be displayed via USB4 ports when using a processor with integrated graphics.

Multi-GPU

AMD CrossFire technology support

Storage

AMD Ryzen 9000 & 7000

1× Blazing M.2 slot, M Key, for 2280 type units (PCIe 5.0 x4 mode)

AMD Ryzen 8000

1× Blazing M.2 slot, M Key, for 2280 type units (PCIe 4.0 x4 mode)

AMD X870E chipset

3× Hyper M.2 slot, M Key, for 2280 type units (PCIe 4.0 x4 mode)

6× SATA 6Gb/s ports

RAID 0, RAID 1 and RAID 10 support for SATA drives

RAID 0, RAID 1, and RAID 10 support for M.2 NVMe drives

USB

AMD CPU

2x USB4 (USB-C) on the back panel

2x USB 3.2 Gen2 (USB 3.1) on the back panel

AMD X870E chipset

1× USB-C 3.2 Gen2×2 available via internal USB connector

3x USB 3.2 Gen2 (USB 3.1) on the back panel

7× USB 3.2 Gen1 (USB 3.0) (3 ports on the back panel, 4 ports available via internal USB connectors)

6× USB 2.0 (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek ALC4082 Codec

5.1-channel High Definition Audio

HIND

1× Realtek RTL8126 5Gigabit LAN controller

WLAN/Bluetooth

2×2 Wi-Fi 7 (802.11a/b/g/n/ac/ax/axe/be)

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

MU-MIMO support

Bluetooth 5.4

Internal connectors

3× thermistor cable connector

1× speaker connector and Power LED

1× RGB LED strip connector

3× addressable LED strip connector

2× 4pin CPU fan connector

4× 4pin chassis fan connector

1× 4pin water cooling pump connector

1× 4pin water cooling pump fan connector

1× 24pin ATX main power connector

2× 8pin 12V power connector

1× M.2 slot, E key for Wi-Fi module (occupied)

1× front panel audio connector

2x USB 2.0 connector (supports 4x USB 2.0 port)

2× USB 3.2 Gen1 (USB 3.0) connector (supports 4× USB 3.2 Gen1 ports)

1× USB-C 3.2 Gen2×2 front panel connector

1× Dr. Debug with LED

1× Power button with LED

1× Reset button with LED

Rear panel connectors

2× Wi-Fi antenna connector

1× HDMI

1× optical S/PDIF output

2× USB4 (USB-C)

5× USB 3.2 Gen2 (USB 3.1)

3× USB 3.2 Gen1 (USB 3.0)

2× USB 2.0

1× RJ-45

2× audio jacks

1× Clear CMOS button

1× BIOS Flashback button

Dimensions

305 × 267 mm

E-ATX format
