ASRock X870 Pro RS / AMD X870 / AM5 / 4x DDR5 DIMM / 3x M.2 / HDMI / USB-C / ATX

Description

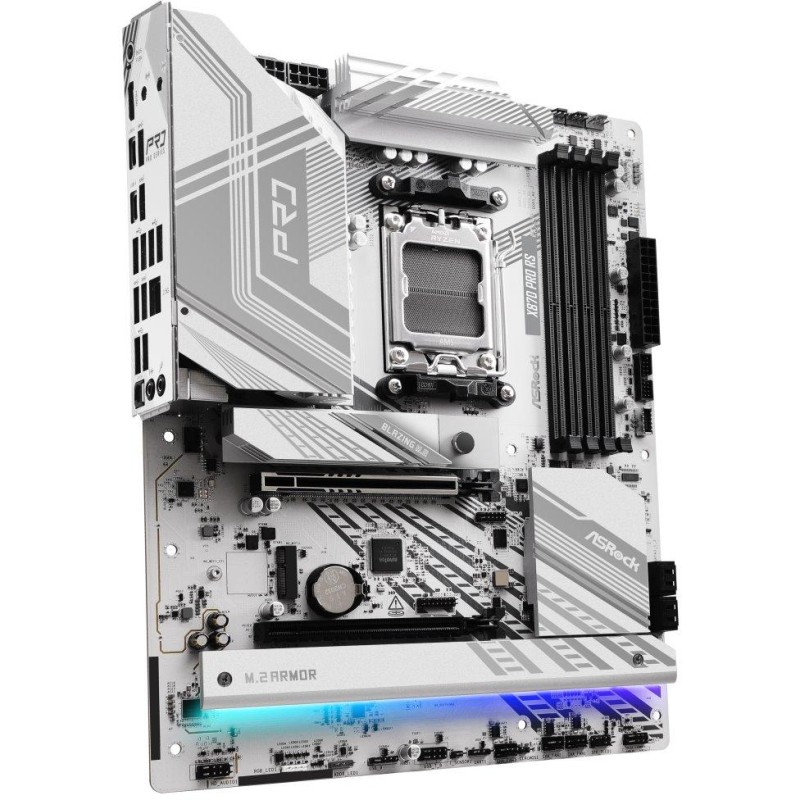

ASRock X870 Pro RS

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 9000, 8000 and 7000 series processors (AM5 socket)

Chipset

AMD X870

Memory

4× DDR5 memory slots, support up to 256 GB

DDR5 support up to 8000+ (OC) MT/s

Dual-channel memory architecture

ECC and non-ECC support, unbuffered

Support for AMD EXtended Profiles for Overclocking (EXPO)

Extreme Memory Profile (XMP) support

Slots

AMD CPU

1× PCIe 5.0 x16 slot

AMD X870 chipset

1× PCIe 4.0 x16 slot (supports x4 mode)

Graphic arts

1× HDMI port, supporting max. resolution 4K at 120 Hz

2× USB4 (USB-C) ports, supporting max. resolution 8K at 30 Hz

Multi-GPU

AMD CrossFire technology support

Storage

AMD CPU

1× Blazing M.2 slot, M Key, for 2280 type units (PCIe 5.0 x4 mode)

AMD X870 chipset

1× Hyper M.2 slot, M Key, for 2230/2242/2260/2280 type units (PCIe 4.0 x4 mode)

1× Ultra M.2 slot, M Key, for 2280 type units (SATA 6Gb/s PCIe 3.0 x4 mode)

2× SATA 6Gb/s ports

ASMedia ASM1061

2× SATA 6Gb/s ports

RAID 0 and RAID 1 support for SATA drives

RAID 0, RAID 1, and RAID 10 support for M.2 NVMe drives

USB

AMD CPU

2x USB4 (USB-C) on the back panel

2× USB 3.2 Gen1 (USB 3.0) on the back panel

AMD X870 chipset

1× USB-C 3.2 Gen2×2 available via internal USB connector

4× USB 3.2 Gen1 (USB 3.0) (2 ports on the back panel, 2 ports available via internal USB connector)

9× USB 2.0 (6 ports on the back panel, 3 ports available via internal USB connectors)

Audio

Realtek ALC1220 Codec

7.1 channel High Definition Audio

HIND

1× Dragon RTL8125BG 2.5Gigabit LAN controller

Internal connectors

1× thermistor cable connector

1× speaker connector and Power LED

1× RGB LED strip connector

3× addressable LED strip connector

2× 4pin CPU fan connector

4× 4pin chassis fan connector

1× 4pin water cooling pump connector

1× 24pin ATX main power connector

2× 8pin 12V power connector

1× M.2 slot, E key for Wi-Fi module (not included)

1× front panel audio connector

2x USB 2.0 connector (supports 3x USB 2.0 port)

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

1× USB-C 3.2 Gen2×2 front panel connector

Rear panel connectors

1× HDMI

1× optical S/PDIF output

2× USB4 (USB-C)

4× USB 3.2 Gen1 (USB 3.0)

6× USB 2.0

1× RJ-45

2× audio jacks

1× BIOS Flashback button

Dimensions

305 × 244 mm

ATX format
