ASRock WRX90 WS EVO / AMD WRX90 / 8x DDR5 DIMM ECC / 2x M.2 / 2x SlimSAS / 2x MCIO / USB-C / DP / EEB

Description

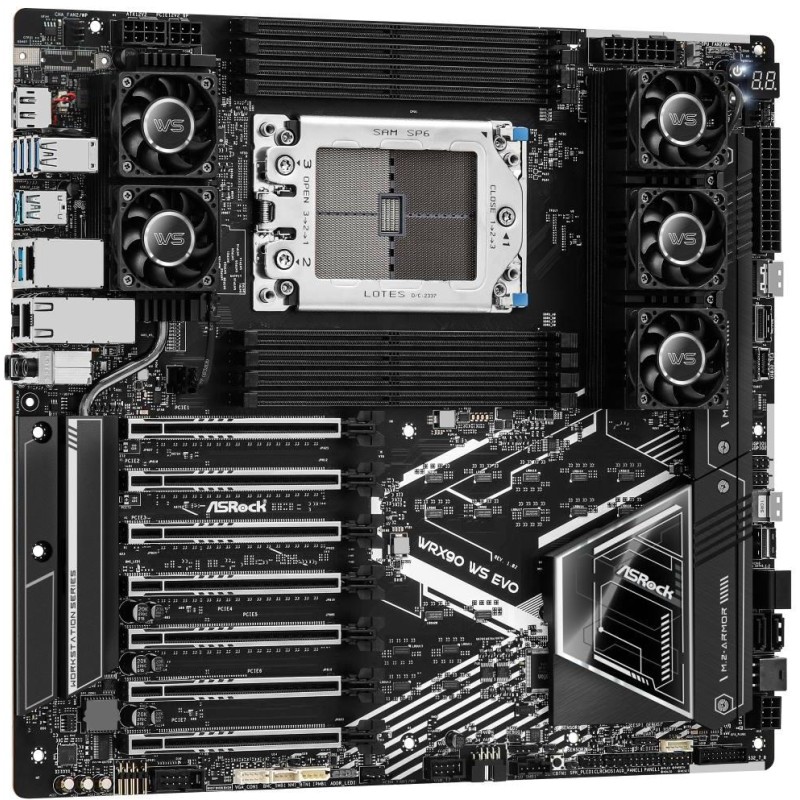

ASRock WRX90 WS EVO

CPU

Support for AMD Ryzen Threadripper PRO processors (TR5 socket)

Chipset

AMD WRX90

Memory

8× DDR5 memory slots, support up to 2048 GB

Supports DDR5 up to 7600+ (OC) MHz

Eight-channel memory architecture

RDIMM/RDIMM-3DS support

ECC memory support

Slots

6× PCIe 5.0 x16 slots

1× PCIe 5.0 x16 slot (supports x8 mode)

Graphic arts

1× DisplayPort 1.1a port, supporting max. resolution 1920 × 1200 at 60 Hz

Storage

AMD CPU

1× Blazing M.2 slot, M Key, for 2260/2280/22110 type units (PCIe 5.0 x4 mode)

2x MCIO slot (PCIe 5.0 x4 or 4x SATA)

1× SlimSAS slot (PCIe 4.0 x4 or 4× SATA)

AMD WRX90 chipset

1× Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)

1× SlimSAS slot (PCIe 4.0 x4)

4× SATA 6Gb/s ports

RAID 0, RAID 1, and RAID 10 support for both SATA and M.2 NVMe drives

USB

AMD CPU

2× USB-C 4.0 ports on the back panel

4× USB 3.2 Gen2 (USB 3.1) ports on the back panel

AMD WRX90 chipset

1× USB-C 3.2 Gen2x2 port available via internal USB connector

4× USB 3.2 Gen1 (USB 3.0) ports (2 ports on the back panel, 2 ports available via internal USB connector)

4× USB 2.0 ports available via internal USB connectors

Audio

Realtek ALC1220 Codec

7.1 channel High Definition Audio

Nahimic Audio

HIND

2× Intel X710-AT2 10Gigabit LAN controller

1× Realtek RTL8211F IPMI LAN controller

Internal connectors

2× thermistor cable connector

1× VGA port connector

1× serial port connector

1× speaker connector and Power LED

1× IPM (Intelligent Platform Management) connector

1× PSU SMBus connector

1× BMC SMBus connector

1× auxiliary panel connector

2× addressable LED strip connector

1× 4pin CPU fan connector

1× 4-pin CPU fan/water cooling pump fan connector

3× 4-pin chassis fan/water cooling pump fan connector

1× 24pin ATX main power connector

1× 3-pin ATX power connector

2× 8pin ATX 12V power connector

2× 6pin PCIe 12V power connector

2× 6pin 12V graphics card power connector

1× front panel audio connector (right angle)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

1× USB-C 3.2 Gen2x2 front panel connector

2× SGPIO connector

1× CPU HP-SMBus connector

1× non-maskable interrupt button connector

1× Dr. Debug

1× Power button

1× Reset button

1× Clear CMOS button

Rear panel ports

1× DisplayPort

1× optical S/PDIF output

2× USB-C 4.0

4× USB 3.2 Gen2 (USB 3.1)

2× USB 3.2 Gen1 (USB 3.0)

3× RJ-45

2× audio jacks

Dimensions

30.5 × 33 cm

E-ATX (EEB) format
