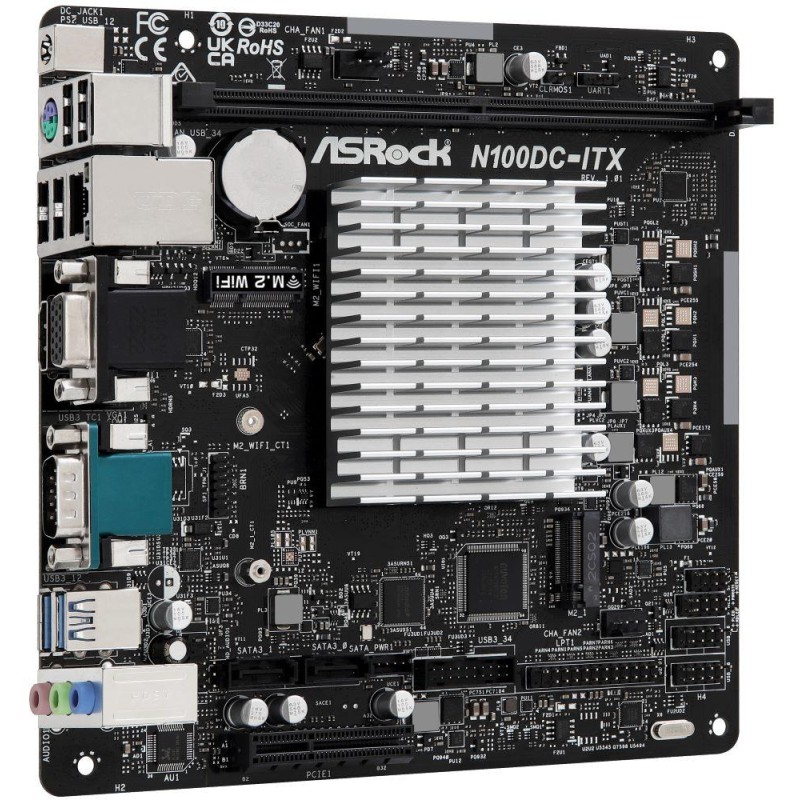

ASRock N100DC-ITX / Alder Lake N100 / 1x DDR4 DIMM / VGA / HDMI / Mini-ITX

Description

ASRock N100DC-ITX

CPU

Intel N100 (up to 3.4 GHz)

Memory

1× DDR4 memory slot, supports up to 32 GB

Supports DDR4 3200 MHz non-ECC, unbuffered memory

Support for ECC UDIMM memory, non-ECC mode

Slots

1× PCIe 3.0 x4 slot (supports x2 mode)

Graphic arts

Integrated Intel UHD graphics

1× HDMI port, supporting max. resolution 4K at 60 Hz

1× VGA port, supporting max. resolution 1920 × 1080 at 60 Hz

Storage

2× SATA 6Gb/s ports

1× M.2 slot, M Key, for type 2280 units (PCIe 3.0 ×2 mode)

USB

4× USB 3.2 Gen1 (USB 3.0) (2 ports on the back panel, 2 ports available via internal USB connector)

8× USB 2.0 (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek ALC897 Codec

7.1 channel High Definition Audio

HIND

1× Realtek RTL8111H Gigabit LAN controller

Internal connectors

1× printer port connector

1× SPI TPM connector

1× speaker connector and intrusion detection

2× 4pin chassis fan connector

1× front panel audio connector

1× M.2 slot, E key for Wi-Fi module (not included)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

Rear panel connectors

1× DC connector (5.5 × 2.5 mm, compatible with 19V power adapter)

1× PS/2 mouse/keyboard port

1× serial port

1× VGA

1× HDMI

4× USB 2.0

2 × USB 3.2 Gen1 (USB 3.0)

1× RJ-45

3× audio jacks

Dimensions

170 × 170 mm

Mini-ITX format
