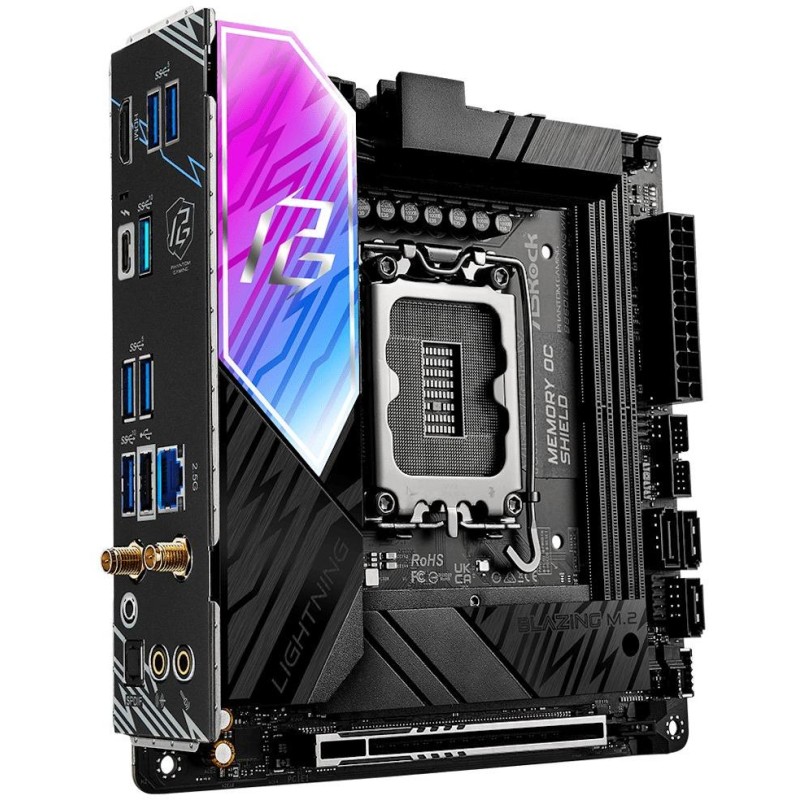

ASRock B860I Lightning WiFi / Intel B860 / LGA1851 / 2x DDR5 / 2x M.2 / HDMI / Thunderbolt 4 / WiFi / Mini-ITX

Description

ASRock B860I PG Lightning WiFi

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for Intel Core Ultra 2 series processors

LGA1851 socket

Chipset

Intel B860

Memory

2× DDR5 memory slots, support up to 128 GB

DDR5 support up to 9333+ (OC) MT/s

Dual-channel memory architecture

Support non-ECC, unbuffered memory

Intel Extreme Memory Profile (XMP) 3.0x support

CUDIMM support

Slots

Intel CPU

1× PCIe 5.0 x16 slot

Graphic arts

1× HDMI 2.1 port, supporting max. resolution 4K at 120 Hz

1× Thunderbolt 4 port, supporting max. resolution 8K at 60 Hz / 5K at 120 Hz

Intel Xe LPG architecture

Storage

Intel CPU

1× Blazing M.2 slot, M Key, for 2280 type units (PCIe 5.0 x4 mode)

Intel B860 chipset

1× Hyper M.2 slot, M Key, for 2280 type units (PCIe 4.0 x4 mode)

3× SATA 6Gb/s ports

Intel Volume Management Device (VMD) support

RAID 0, RAID 1, and RAID 5 support for SATA drives

USB

1× Thunderbolt 4 (USB-C) port on the back panel

1× USB-C 3.2 Gen2 available via internal USB connector

2x USB 3.2 Gen2 (USB 3.1) on the back panel

6× USB 3.2 Gen1 (USB 3.0) ports (4 ports on the back panel, 2 ports available via internal USB connector)

3× USB 2.0 ports (1 port on the back panel, 2 ports available via internal USB connector)

Audio

Realtek ALC1220 Codec

7.1 channel High Definition Audio

Nahimic Audio

HIND

1× Dragon RTL8125BG 2.5Gigabit LAN controller

WLAN/Bluetooth

Wi-Fi 6E

Wi-Fi 802.11a/b/g/n/ac/ax/axe

Dual-Band 2×2 (2.4 GHz, 5 GHz, 6 GHz)

MU-MIMO support

Bluetooth 5.3

Internal connectors

1× thermistor connector

2× addressable LED strip connector

1× 4pin CPU fan connector

1× 4pin chassis fan connector

1× 4pin water cooling pump fan connector

1× 24pin ATX main power connector

1× 8pin 12V power connector

1× front panel audio connector

1× USB 2.0 connector (supports 2× USB 2.0 port)

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

1× USB-C 3.2 Gen2 front panel connector

Rear panel ports

2× Wi-Fi antenna connector

1× HDMI

1× optical S/PDIF output

1× Thunderbolt 4

2× USB 3.2 Gen2 (USB 3.1)

4× USB 3.2 Gen1 (USB 3.0)

1× USB 2.0

1× RJ-45

1× BIOS flashback button

2× audio jacks

Dimensions

17 × 17 cm

Mini-ITX format
