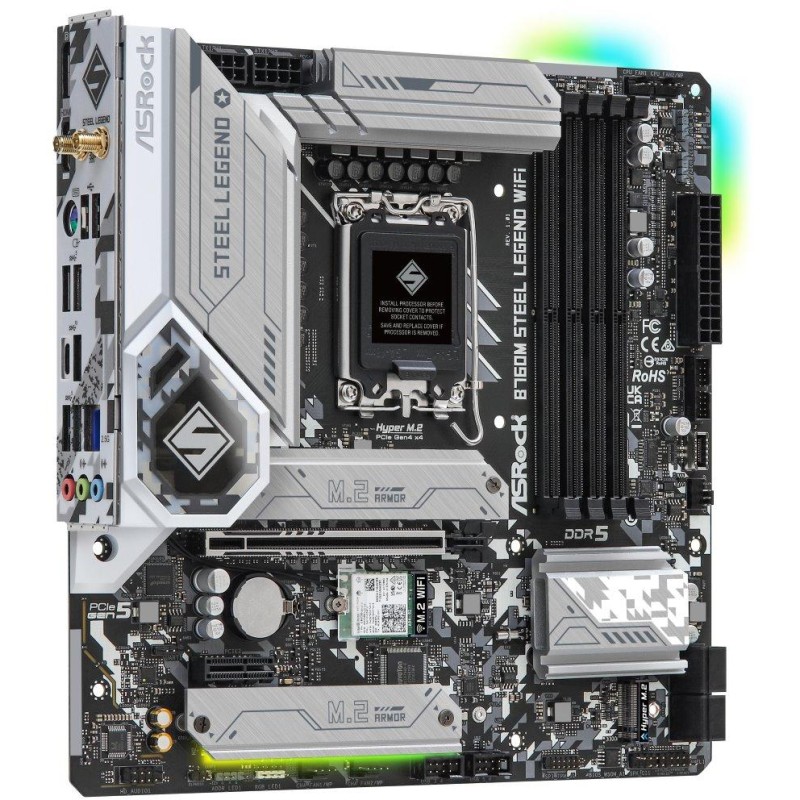

ASRock B760M STEEL LEGEND WIFI / Intel B760 / LGA1700 / 4x DDR5 / 3x M.2 / HDMI / DP / USB-C / WiFi / mATX

ASRock B760M STEEL LEGEND WIFI / Intel B760 / LGA1700 / 4x DDR5 / 3x M.2 / HDMI / DP / USB-C / WiFi / mATX

162,10 €

SKU: MotherboardsASROCK-B760M-STEEL-L-1700 Category: Tag:

Description

ASRock B760M STEEL LEGEND WIFI

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for 12th and 13th generation Intel Core/ Pentium/ Celeron processors (LGA1700 socket)

Chipset

Intel B760

Memory

4x DDR5 memory slots, support up to 192 GB

DDR5 support up to 7200+ (OC) MHz

Dual-channel memory architecture

Support non-ECC, unbuffered memory

Intel Extreme Memory Profile (XMP) 3.0 support

Slots

Intel CPU

1x PCIe 5.0 x16 slot

Intel B760 chipset

1x PCIe 4.0 x1 slot

Graphic arts

1x HDMI port, supporting max. resolution 4K at 60 Hz

1x DisplayPort port, supporting max. resolution 8K at 60 Hz, 5K at 120 Hz

1x eDP port, supporting max. Full HD resolution at 60 Hz

Storage

Intel CPU

1x Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)

Intel B760 chipset

2x Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)

4x SATA 6Gb/s ports

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA drives

Intel Volume Management Device (VMD) support

USB

2x USB 3.2 Gen2 Type-C ports (1 port on the back panel, 1 port available via internal USB connector)

1x USB 3.2 Gen2 type A port on the back panel

6x USB 3.2 Gen1 (USB 3.0) ports (4 ports on the back panel, 2 ports available via internal USB connector)

6x USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek ALC897 Codec

7.1 channel High Definition Audio

HIND

1x Dragon RTL8125BG 2.5Gigabit LAN controller

WLAN/Bluetooth

Wi-Fi 802.11a/b/g/n/ac/ax

Dual Band (2.4 GHz, 5 GHz, 6 GHz)

MU-MIMO support

Bluetooth 5.3

Internal connectors

1x 24-pin ATX main power connector

2x 8-pin 12V power connector

1x 4-pin CPU fan connector

1x 4-pin CPU fan/water cooling pump fan connector

3x 4-pin chassis fan/water cooling pump fan connector

3x addressable LED strip connector

1x RGB LED strip connector

3x M.2 slots, M Key

4x SATA 6 Gb/s connector

2x USB 2.0 connector (supports 4x USB 2.0 port)

1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)

1x USB 3.2 Gen2 Type-C front panel connector

1x eDP connector

1x SPI TPM connector

1x speaker connector and case opening detection

1x front panel audio connector

Rear panel ports

2x Wi-Fi antenna connector

1x PS/2 keyboard and mouse combo port

1x HDMI

1x DisplayPort

1x USB 3.2 Gen2 Type-C

1x USB 3.2 Gen2 type A

4x USB 3.2 Gen1 (USB 3.0)

2x USB 2.0

1x RJ-45

3x audio jacks

Dimensions

24.4 x 24.4 cm

Micro ATX format

Additional information

Brand

ASROCK
Model

ASRock
Warranty period for registration number (months)

24
Manufacturer

ASROCK
Warranty length (months)

24
Processed

Approved
Wi-Fi

Yes
RJ-45 (number)

1
Dimensions

244 × 244 mm
Dropshipment - Alza

Yes
USB 2.0 (number)

2
Gigabit LAN

Yes
Wi-Fi standard

802.11a/b/g/n/ac/an/ax
USB Type C (number)

1
USB 3.0 (number)

4
Analog audio input/output (number)

3
HDMI (number)

1
TDP (W)

125
USB 3.1 (number)

1
RAM type

DDR5
Chipset

Intel B760
Number of memory slots

4
DisplayPort (number)

1
Motherboard format

MATX
PCI Express X1 (number)

1
PCI Express X16 (number)

1
RAID controller

Yes
Max RAM size (GB)

192
Processor socket

1700
M.2 port (for expansion cards)

No
SATA III (number)

4
M.2 port (number)

3
Dropshipment - Alza - frozen

Yes
