ASRock B760M-ITX/D4 WIFI / Intel B760 / LGA1700 / 2x DDR4 / 1x M.2 / HDMI / DP / USB-C / WiFi / Mini-ITX

ASRock B760M-ITX/D4 WIFI / Intel B760 / LGA1700 / 2x DDR4 / 1x M.2 / HDMI / DP / USB-C / WiFi / Mini-ITX

144,78 €

SKU: MotherboardsASROCK-B760M-ITX-D4--1700 Category: Tag:

Description

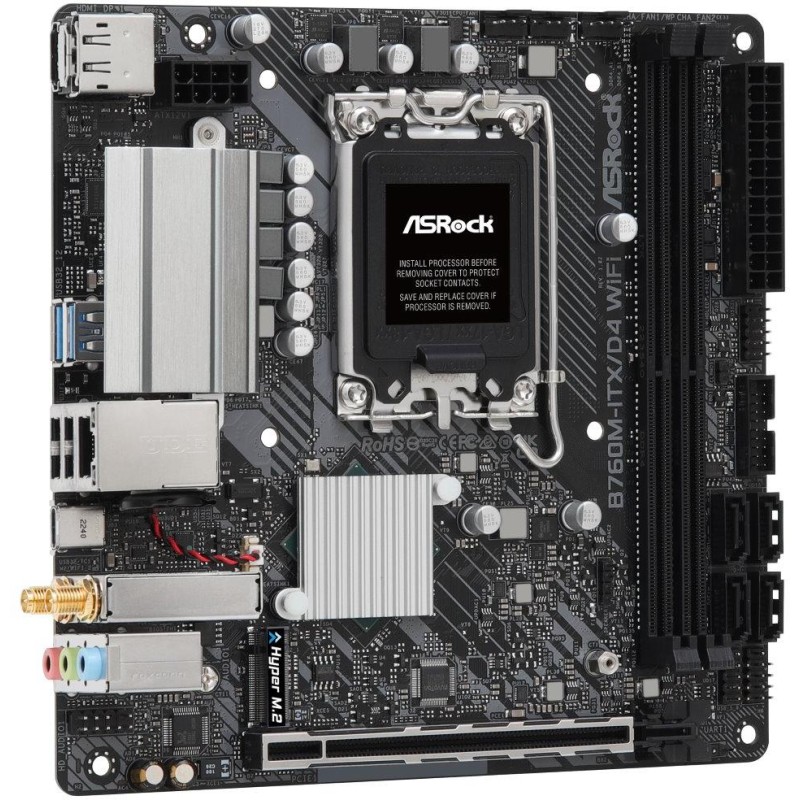

ASRock B760M-ITX/D4 WIFI

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for 12th and 13th generation Intel Core/ Pentium/ Celeron processors (LGA1700 socket)

Chipset

Intel B760

Memory

2× DDR4 memory slots, support up to 64 GB

Supports DDR4 up to 5333+ (OC) MHz

Dual-channel memory architecture

Support non-ECC, unbuffered memory

ECC support, no buffering (non-ECC mode)

Intel Extreme Memory Profile (XMP) 2.0 support

Slots

Intel CPU

1× PCIe 4.0 x16 slot

Graphic arts

1× HDMI port, supporting max. resolution 4K at 60 Hz

1× DisplayPort port, supporting max. resolution 8K at 60 Hz, 5K at 120 Hz

Storage

Intel CPU

1× Hyper M.2 slot, M Key, for 2280 type units (PCIe 4.0 x4 mode)

Intel B760 chipset

4× SATA 6Gb/s ports

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA drives

Intel Volume Management Device (VMD) support

USB

1× USB-C 3.2 Gen2×2 port on the back panel

4× USB 3.2 Gen1 (USB 3.0) ports (2 ports on the back panel, 2 ports available via internal USB connector)

6× USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek ALC897 Codec

7.1 channel High Definition Audio

HIND

1× Realtek RTL8111H Gigabit LAN controller

WLAN/Bluetooth

Wi-Fi 802.11a/b/g/n/ac/ax

Dual Band (2.4 GHz, 5 GHz, 6 GHz)

MU-MIMO support

Bluetooth

Internal connectors

1× 24pin ATX main power connector

1× 8pin 12V power connector

1× 4pin CPU fan connector

1× 4pin chassis fan connector

1× 4-pin chassis fan/water cooling pump fan connector

1× M.2 slot, M Key

4× SATA 6Gb/s connector

2x USB 2.0 connector (supports 4x USB 2.0 port)

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

1× front panel audio connector

Rear panel ports

2× Wi-Fi antenna connector

1× HDMI

1× DisplayPort

1× USB-C 3.2 Gen2×2

2× USB 3.2 Gen1 (USB 3.0)

2× USB 2.0

1× RJ-45

3× audio jacks

Dimensions

17 × 17 cm

Mini ITX format

Additional information

Brand

ASROCK
Model

ASRock
Warranty period for registration number (months)

24
Manufacturer

ASROCK
Warranty length (months)

24
Processed

Approved
Wi-Fi

Yes
RJ-45 (number)

1
Dimensions

170 × 170 mm
Dropshipment - Alza

Yes
USB 2.0 (number)

2
Gigabit LAN

Yes
Wi-Fi standard

802.11a/b/g/n/ac/ax
USB Type C (number)

1
USB 3.0 (number)

2
Analog audio input/output (number)

3
HDMI (number)

1
TDP (W)

125
RAM type

DDR4
Chipset

Intel B760
Number of memory slots

2
DisplayPort (number)

1
Motherboard format

Mini-ITX
PCI Express X16 (number)

1
RAID controller

Yes
Processor socket

1700
M.2 port (for expansion cards)

No
SATA III (number)

4
M.2 port (number)

1
Dropshipment - Alza - frozen

Yes
