ASRock B760M-HDV/M.2 D4 / Intel B760 / LGA1700 / 2x DDR4 / 2x M.2 / VGA / HDMI / DP / USB-C / mATX

Description

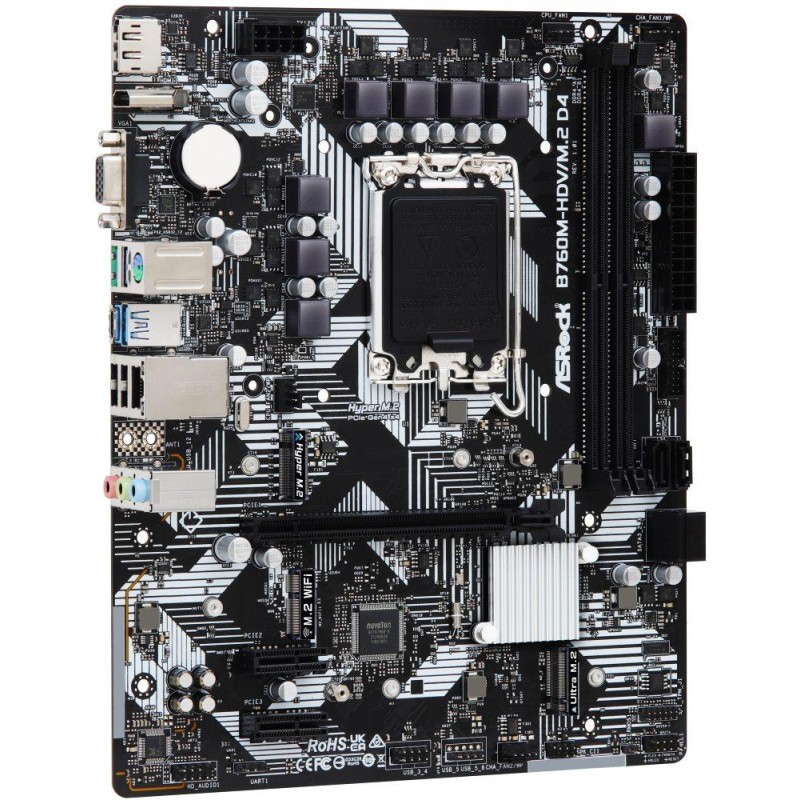

ASRock B760M-HDV/M.2 D4

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for 12th and 13th generation Intel Core/ Pentium/ Celeron processors (LGA1700 socket)

Chipset

Intel B760

Memory

2x DDR4 memory slots, support up to 64 GB

Supports DDR4 up to 5333+ (OC) MHz

Dual-channel memory architecture

Support non-ECC, unbuffered memory

ECC support, no buffering (non-ECC mode)

Intel Extreme Memory Profile (XMP) 2.0 support

Slots

Intel CPU

1x PCIe 4.0 x16 slot

Intel B760 chipset

2x PCIe 3.0 x1 slots

Graphic arts

1x HDMI port, supporting max. resolution 4K at 60 Hz

1x DisplayPort port, supporting max. resolution 8K at 60 Hz, 5K at 120 Hz

1x VGA port, supporting max. Full HD resolution at 60 Hz

Storage

Intel CPU

1x Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)

Intel B760 chipset

1x Ultra M.2 slot, M Key, for 2260/2280 type units (SATA and PCIe 3.0 x4 mode)

4x SATA 6Gb/s ports

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA drives

Intel Volume Management Device (VMD) support

USB

1x USB 3.2 Gen1 (USB 3.0) Type-C port on the back panel

5x USB 3.2 Gen1 (USB 3.0) ports (3 ports on the back panel, 2 ports available via internal USB connector)

5x USB 2.0 ports (2 ports on the back panel, 3 ports available via internal USB connectors)

Audio

Realtek ALC887/897 Codec

7.1 channel High Definition Audio

HIND

1x Realtek 8111H Gigabit LAN controller

Internal connectors

1x 24-pin ATX main power connector

1x 8-pin 12V power connector

1x 4-pin CPU fan connector

1x 4-pin CPU fan/water cooling pump fan connector

2x 4-pin chassis fan/water cooling pump fan connector

2x M.2 slots, M Key

1x M.2 slot, E key for Wi-Fi module (not included)

4x SATA 6 Gb/s connector

2x USB 2.0 connector (supports 3x USB 2.0 port)

1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)

1x SPI TPM connector

1x speaker connector and case opening detection

1x front panel audio connector

Rear panel ports

1x PS/2 keyboard and mouse combo port

1x HDMI

1x DisplayPort

1x VGA

1x USB 3.2 Gen1 (USB 3.0) type C

3x USB 3.2 Gen1 (USB 3.0) type A

2x USB 2.0

1x RJ-45

3x audio jacks

Dimensions

24.4 x 20.1 cm

Micro ATX format
