ASRock B760 PRO RS / Intel B760 / LGA1700 / 4x DDR5 / 3x M.2 / HDMI / DP / USB-C / ATX

ASRock B760 PRO RS / Intel B760 / LGA1700 / 4x DDR5 / 3x M.2 / HDMI / DP / USB-C / ATX

128,71 €

SKU: MotherboardsASROCK-B760-PRO-RS-I-1700 Category: Tag:

Description

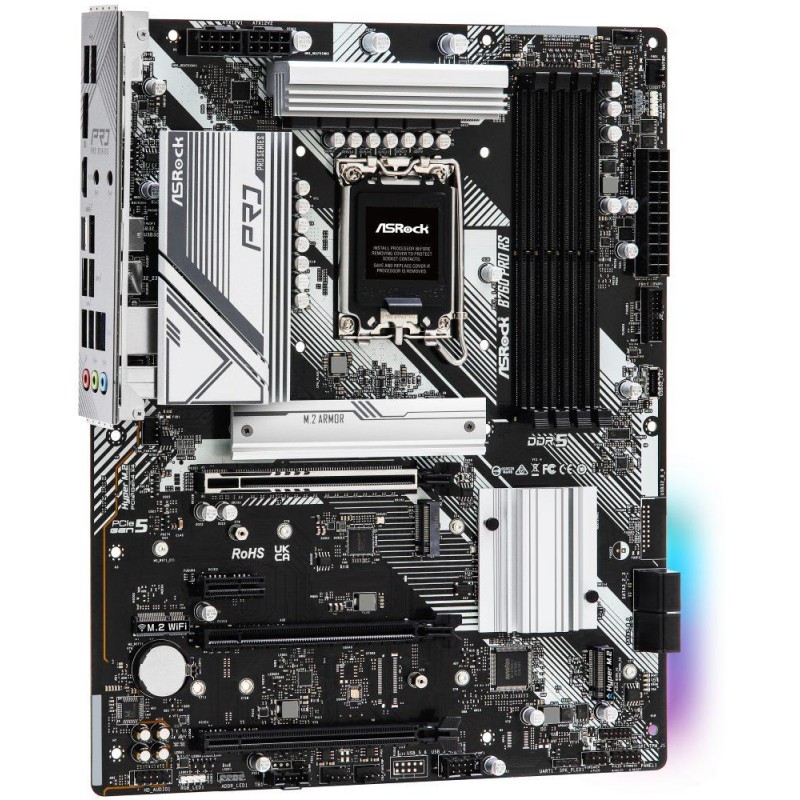

ASRock B760 PRO RS

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for 12th and 13th generation Intel Core/ Pentium/ Celeron processors (LGA1700 socket)

Chipset

Intel B760

Memory

4x DDR5 memory slots, support up to 192 GB

DDR5 support up to 7200+ (OC) MHz

Dual-channel memory architecture

Support non-ECC, unbuffered memory

Intel Extreme Memory Profile (XMP) 3.0 support

Slots

Intel CPU

1x PCIe 5.0 x16 slot

Intel B760 chipset

1x PCIe 4.0 x16 slot (supports x4 mode)

1x PCIe 3.0 x16 slot (supports x1 mode)

1x PCIe 3.0 x1 slot

Graphic arts

1x HDMI port, supporting max. resolution 4K at 60 Hz

1x DisplayPort port, supporting max. resolution 8K at 60 Hz, 5K at 120 Hz

1x eDP port, supporting max. Full HD resolution at 60 Hz

Storage

Intel CPU

1x Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)

Intel B760 chipset

1x M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x2 mode)

1x Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)

4x SATA 6Gb/s ports

RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives

Intel Volume Management Device (VMD) support

USB

2x USB 3.2 Gen2 Type-C ports (1 port on the back panel, 1 port available via internal USB connector)

1x USB 3.2 Gen2 type A port on the back panel

6x USB 3.2 Gen1 (USB 3.0) ports (4 ports on the back panel, 2 ports available via internal USB connector)

4x USB 2.0 ports (2 ports on the back panel, 2 ports available via internal USB connectors)

Audio

Realtek ALC897 Codec

7.1 channel High Definition Audio

HIND

1x Dragon RTL8125BG 2.5Gigabit LAN controller

Internal connectors

1x 24-pin ATX main power connector

2x 8-pin 12V power connector

1x 4-pin CPU fan connector

1x 4-pin CPU fan/water cooling pump fan connector

5x 4-pin chassis fan/water cooling pump fan connector

2x addressable LED strip connector

2x RGB LED strip connector

3x M.2 slots, M Key

1x M.2 slot, E key for Wi-Fi module (not included)

4x SATA 6 Gb/s connector

1x USB 2.0 connector (supports 2x USB 2.0 port)

1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)

1x USB 3.2 Gen2 Type-C front panel connector

1x eDP connector

1x SPI TPM connector

1x speaker connector and Power LED

1x front panel audio connector

1x 5-pin Thunderbolt AIC connector (supports ASRock Thunderbolt 4 AIC card)

Rear panel ports

1x HDMI

1x DisplayPort

1x USB 3.2 Gen2 type A

1x USB 3.2 Gen2 Type-C

4x USB 3.2 Gen1 (USB 3.0)

2x USB 2.0

1x RJ-45

3x audio jacks

Dimensions

30.5 x 24.4 cm

ATX format

Additional information

Brand

ASROCK
Model

ASRock
Warranty period for registration number (months)

24
Manufacturer

ASROCK
Warranty length (months)

24
Processed

Approved
Wi-Fi

No
RJ-45 (number)

1
Dimensions

305 × 244 mm
Dropshipment - Alza

Yes
USB 2.0 (number)

2
Gigabit LAN

Yes
USB Type C (number)

1
USB 3.0 (number)

4
Analog audio input/output (number)

3
HDMI (number)

1
TDP (W)

125
USB 3.1 (number)

1
RAM type

DDR5
Chipset

Intel B760
Number of memory slots

4
DisplayPort (number)

1
Motherboard format

ATX
PCI Express X1 (number)

1
PCI Express X16 (number)

3
RAID controller

Yes
Max RAM size (GB)

192
Processor socket

1700
M.2 port (for expansion cards)

Yes
SATA III (number)

4
M.2 port (number)

3
Dropshipment - Alza - frozen

Yes
