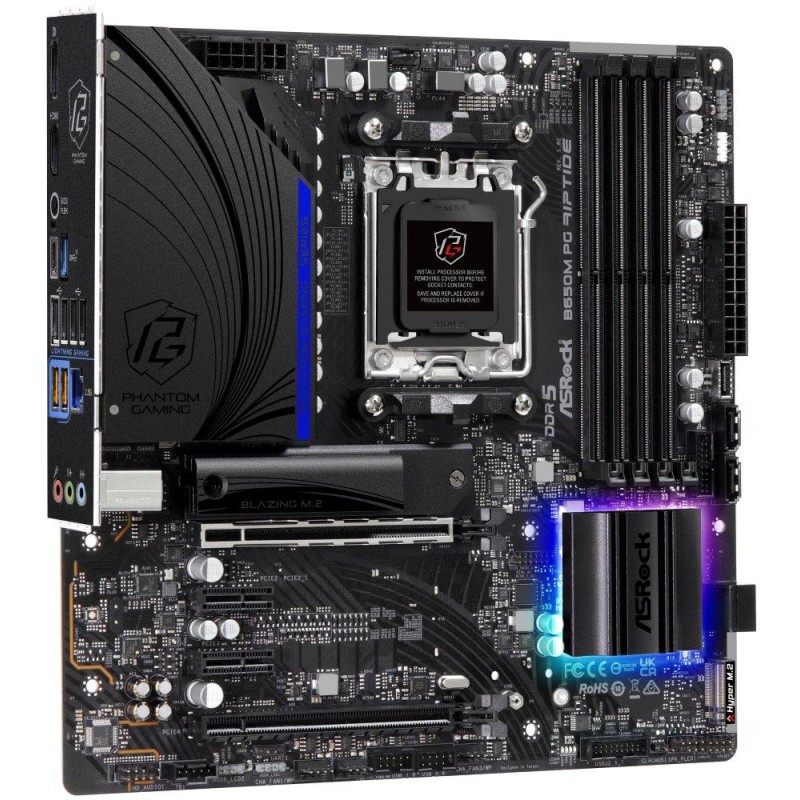

ASRock B650M PG Riptide / AMD B650 / AM5 / 4x DDR5 DIMM / 2x M.2 / HDMI / DP / USB-C / mATX

ASRock B650M PG Riptide / AMD B650 / AM5 / 4x DDR5 DIMM / 2x M.2 / HDMI / DP / USB-C / mATX

183,53 €

SKU: MotherboardsASROCK-B650M-PG-RIPT-23290 Category: Tag:

Description

ASRock B650M PG Riptide

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 7000 series processors (Socket AM5)

Chipset

AMD B650

Memory

4x DDR5 memory slots, support up to 192 GB

Supports DDR5 up to 6200+ (OC) MHz

Dual-channel memory architecture

ECC/non-ECC support, unbuffered

Support for AMD EXtended Profiles for Overclocking (EXPO)

Extreme Memory Profile (XMP) support

Slots

AMD CPU

1x PCIe 4.0 x16 slot

AMD B650 chipset

1x PCIe 4.0 x16 slot (supports x4 mode)

2x PCIe 3.0 x1 slots

Graphic arts

1x HDMI port, supporting max. resolution 4K at 120 Hz

1x DisplayPort port, supporting max. resolution 4K at 120 Hz

Multi-GPU

AMD CrossFire technology support

Storage

AMD CPU

1x Blazing M.2 slot, M Key, for 2260/2280 type units (PCIe 5.0 x4 mode)

AMD B650 chipset

1x Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)

4x SATA 6Gb/s ports

ASRock U.2 Kit Support

RAID 0, RAID 1 and RAID 10 support for SATA drives

RAID 0, RAID 1, and RAID 10 support for M.2 NVMe drives

USB

1x USB 3.2 Gen2 Type-C port on the back panel

1x USB 3.2 Gen2 type A port on the back panel

1x USB 3.2 Gen1 Type C port available via internal USB connector

6x USB 3.2 Gen1 (USB 3.0) ports (2 ports on the back panel, 4 ports available via internal USB connectors)

8x USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek ALC897 Codec

7.1 channel High Definition Audio

Nahimic audio

HIND

1x Dragon RTL8125BG 2.5Gigabit LAN controller

Internal connectors

1x SPI TPM connector

1x speaker connector and Power LED

1x RGB LED strip connector

3x addressable LED strip connector

1x 4-pin CPU fan connector

1x 4-pin CPU fan/CPU water cooling fan connector

3x 4-pin chassis fan/CPU water cooling fan connector

1x 24-pin ATX main power connector

1x 8-pin 12V power connector

1x 4-pin 12V power connector

1x front panel audio connector

1x Thunderbolt AIC connector (supports ASRock Thunderbolt 4 AIC Card)

2x USB 2.0 connector (supports 4x USB 2.0 port)

2x USB 3.2 Gen1 (USB 3.0) connector (supports 4x USB 3.2 Gen1 port)

1x USB 3.2 Gen1 Type-C front panel connector

Rear panel ports

1x HDMI

1x DisplayPort

1x USB 3.2 Gen2 Type-C

1x USB 3.2 Gen2 (USB 3.1 Gen2) type A

2x USB 3.2 Gen1 (USB 3.0)

4x USB 2.0

1x RJ-45

1x BIOS Flashback button

3x audio jacks

Dimensions

24.4 x 24.4 cm

Micro ATX format

Additional information

Brand

ASROCK
Model

ASRock
Warranty period for registration number (months)

24
Manufacturer

ASROCK
Warranty length (months)

24
Processed

Approved
Wi-Fi

No
RJ-45 (number)

1
Dimensions

244 × 244 mm
Dropshipment - Alza

Yes
USB 2.0 (number)

4
Gigabit LAN

Yes
USB Type C (number)

1
USB 3.0 (number)

2
Analog audio input/output (number)

3
HDMI (number)

1
TDP (W)

170
USB 3.1 (number)

1
RAM type

DDR5
Chipset

AMD B650
Number of memory slots

4
DisplayPort (number)

1
Motherboard format

MATX
PCI Express X1 (number)

2
PCI Express X16 (number)

2
RAID controller

Yes
Max RAM size (GB)

192
Processor socket

AM5
M.2 port (for expansion cards)

No
SATA III (number)

4
M.2 port (number)

2
Dropshipment - Alza - frozen

Yes
