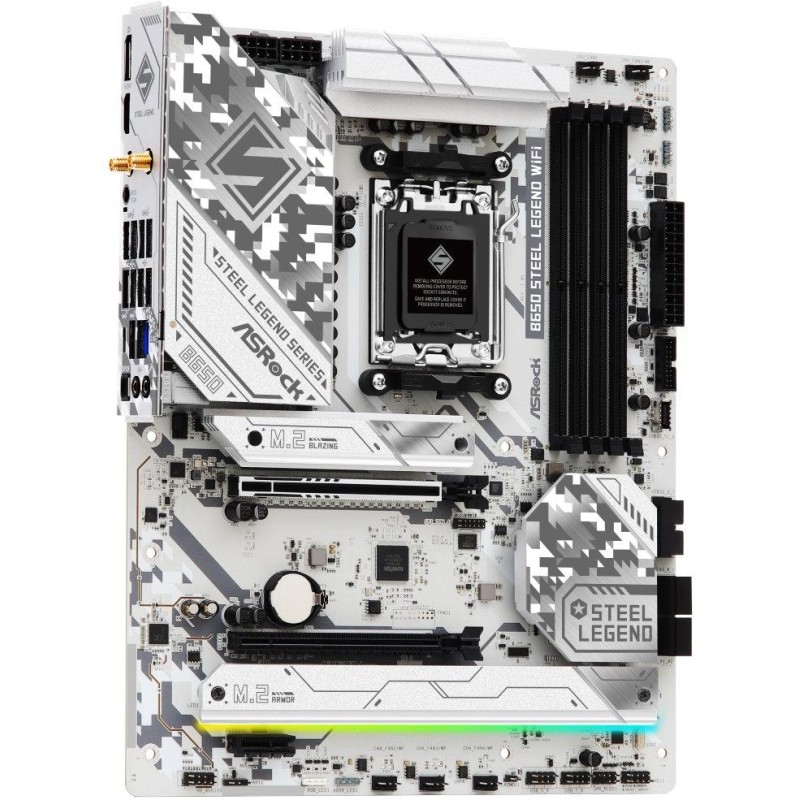

ASRock B650 Steel Legend WiFi / AMD B650 / AM5 / 4x DDR5 DIMM / 3x M.2 / HDMI / DP / USB-C / WiFi / ATX

ASRock B650 Steel Legend WiFi / AMD B650 / AM5 / 4x DDR5 DIMM / 3x M.2 / HDMI / DP / USB-C / WiFi / ATX

199,44 €

SKU: MotherboardsASROCK-B650-STEEL-LE-21816 Category: Tag:

Description

ASRock B650 Steel Legend WiFi

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 8000 and 7000 series processors (AM5 socket)

Chipset

AMD B650

Memory

4× DDR5 memory slots, support up to 192 GB

DDR5 support up to 7200+ (OC) MHz

Dual-channel memory architecture

ECC/non-ECC support, unbuffered

Support for AMD EXtended Profiles for Overclocking (EXPO)

Extreme Memory Profile (XMP) support

Slots

AMD CPU

1× PCIe 5.0 x16 slot

AMD B650 chipset

1× PCIe 3.0 x16 slot (supports x4 mode)

1× PCIe 4.0 x1 slot

Graphic arts

1× HDMI port, supporting max. resolution 4K at 120 Hz

1× DisplayPort port, supporting max. resolution 4K at 120 Hz

Multi-GPU

AMD CrossFire technology support

Storage

AMD CPU

1× Blazing M.2 slot, M Key, for 2260/2280 type units (PCIe 5.0 x4 mode)

1× Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)

AMD B650 chipset

1× Hyper M.2 slot, M Key, for 2230/2260/2280 type units (PCIe 4.0 x4 mode)

2× SATA 6Gb/s ports

ASMedia ASM1061

2× SATA 6Gb/s ports

RAID 0 and RAID 1 support for SATA drives

RAID 0, RAID 1, and RAID 10 support for M.2 NVMe drives

USB

AMD CPU

1× USB 3.2 Gen2 (USB 3.1) port on the back panel

2× USB 3.2 Gen1 (USB 3.0) ports on the back panel

AMD B650 chipset

1× USB-C 3.2 Gen2x2 port on the back panel

1× USB-C 3.2 Gen1 port available via internal USB connector

6× USB 3.2 Gen1 (USB 3.0) ports (2 ports on the back panel, 4 ports available via internal USB connectors)

8× USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek ALC4082 Codec

7.1 channel High Definition Audio

Nahimic audio

HIND

1× Dragon RTL8125BG 2.5Gigabit LAN controller

WLAN/Bluetooth

AMD Wi-Fi 6E

Wi-Fi 802.11a/b/g/n/ac/ax/axe

Dual Band (2.4 GHz, 5 GHz, 6 GHz)

MU-MIMO support

Bluetooth 5.2

Internal connectors

1× SPI TPM connector

1× speaker connector and Power LED

1× RGB LED strip connector

3× addressable LED strip connector

1× 4pin CPU fan connector

1× 4pin CPU fan/water cooling fan connector

4× 4pin chassis fan/water cooling fan connector

1× 24pin ATX main power connector

2× 8pin 12V power connector

1× front panel audio connector

2x USB 2.0 connector (supports 4x USB 2.0 port)

2× USB 3.2 Gen1 (USB 3.0) connector (supports 4× USB 3.2 Gen1 ports)

1× USB-C 3.2 Gen1 front panel connector

Rear panel ports

2× Wi-Fi antenna connector

1× HDMI

1× DisplayPort

1× optical S/PDIF output

1× USB-C 3.2 Gen2x2

1× USB 3.2 Gen2 (USB 3.1)

4× UUSB 3.2 Gen1 (USB 3.0)

4× USB 2.0

1× RJ-45

1× BIOS Flashback button

2× audio jacks

Dimensions

30.5 × 24.4 cm

ATX format

Additional information

Brand

ASROCK
Model

ASRock
Warranty period for registration number (months)

36
Manufacturer

ASROCK
Warranty length (months)

36
Processed

Approved
Wi-Fi

Yes
RJ-45 (number)

1
Dimensions

305 × 244 mm
Dropshipment - Alza

Yes
USB 2.0 (number)

4
Gigabit LAN

Yes
Wi-Fi standard

802.11a/b/g/n/ac/ax/axe
USB Type C (number)

1
USB 3.0 (number)

4
Analog audio input/output (number)

2
HDMI (number)

1
TDP (W)

170
USB 3.1 (number)

1
RAM type

DDR5
Chipset

AMD B650
Number of memory slots

4
DisplayPort (number)

1
Motherboard format

ATX
PCI Express X1 (number)

1
PCI Express X16 (number)

2
RAID controller

Yes
Max RAM size (GB)

192
Processor socket

AM5
M.2 port (for expansion cards)

No
SATA III (number)

4
M.2 port (number)

3
Optical audio output (number)

1
SPDIF optical (number)

1
