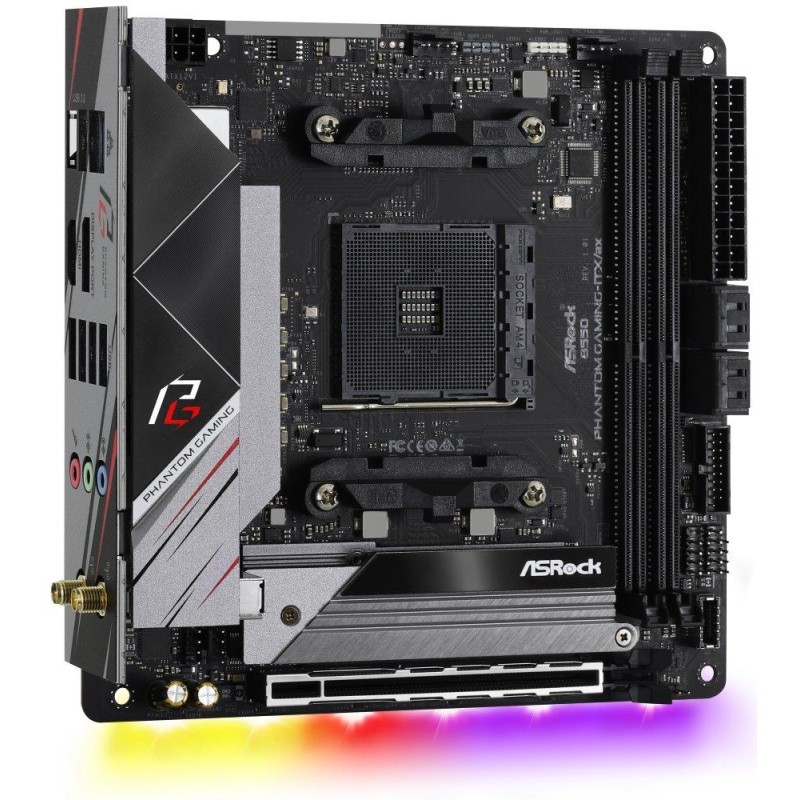

ASRock B550 Phantom Gaming-ITX/ax

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 3rd generation and higher processors (AM4 socket)

Does not support Ryzen 5 3400G and Ryzen 3 3200G processors

Chipset

AMD B550

Memory

2 x DDR4 memory slots, support up to 64 GB

Dual-channel memory architecture

Support DDR4 5400+ (OC)/ 5300 (OC)/ 5200 (OC)/ 5100 (OC)/ 5000 (OC)/ 4933 (OC)/ 4866 (OC)/ 4800 (OC)/ 4733 (OC)/ 4666 (OC)/ 4600 (OC)/ 4533 (OC)/ 4466 (OC)/ 4400 (OC)/ 4333 (OC)/ 4266 (OC)/ 4200 (OC)/ 4133 (OC)/ 4000 (OC)/ 3866 (OC)/ 3800 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3200/ 2933/ 2667/ 2400/ 2133MHz

Ryzen (Matisse) CPU supports DDR4 5100+ (OC)/ 5000 (OC)/ 4933 (OC)/ 4866 (OC)/ 4800 (OC)/ 4733 (OC)/ 4666 (OC)/ 4600 (OC)/ 4533 (OC)/ 4466 (OC)/ 4400 (OC)/ 4333 (OC)/ 4266 (OC)/ 4200 (OC)/ 4133 (OC)/ 4000 (OC)/ 3866 (OC)/ 3800 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz

ECC and non-ECC support, unbuffered

Ryzen CPU (Picasso and Raven Ridge) only supports non-ECC, no cache (ECC supported only on PRO versions)

Intel Extreme Memory Profile (XMP) support

Slots

1 x PCIe 3.0 x16 slot

Ryzen (Matisse) CPU supports PCIe 4.0

Graphic arts

1 x HDMI port, supporting max. resolution 4096 x 2160 at 60 Hz

1 x DisplayPort port, supporting max. resolution 5120 x 2880 at 120 Hz

Storage

4 x SATA 6Gb/s ports

RAID 0, RAID 1 and RAID 10 support

1 x Hyper M.2 slot, M Key, for type 2280 drives (PCIe 3.0 x4 mode)

Ryzen CPU (Matisse) supports PCIe 4.0 x4 mode

1 x Ultra M.2 slot, M Key, for type 2280 drives (SATA and PCIe 3.0 x4 mode)

USB

2 x USB 2.0 ports available via internal USB connectors

6 x USB 3.2 Gen1 (USB 3.0) ports (4 ports on the back panel, 2 ports available via internal USB connector)

1 x USB 3.2 Gen2 (USB 3.1 Gen2) port on the back panel

1 x USB 3.2 Gen2 Type-C port on the back panel

1 x USB 3.2 Gen2 Type-C front panel port accessible via internal USB connector

Audio

Realtek ALC1220 Codec

7.1 channel High Definition Audio

Premium Blu-ray Audio support

120dB SNR DAC with differential amplifier

Direct Drive technology support

HIND

1 x Intel I225V 2.5Gigabit LAN controller

WLAN/Bluetooth

Intel Wi-Fi 802.11a/b/g/n/ax

Dual Band (2.4GHz, 5GHz)

MU-MIMO support

Data transfer speed up to 2.4 Gbps

Bluetooth 5.1

Internal connectors

4 x SATA 6Gb/s connectors

2 x M.2 slots, M Key

1 x RGB LED strip connector

1 x addressable LED strip connector

1 x 4-pin CPU fan connector

1 x 4-pin CPU fan/water cooling pump connector

1 x 4-pin chassis fan/water cooling pump connector

1 x 24-pin ATX main power connector

1 x 8-pin 12V power connector

1 x front panel audio connector

1 x USB 2.0 connector (supports 2 x USB 2.0 port)

1 x USB 3.2 Gen1 (USB 3.0) connector (supports 2 x USB 3.2 Gen1 port)

1 x USB 3.2 Gen2 type C port front panel

Rear panel ports

2 x Wi-Fi antenna connector

1 x HDMI

1 x DisplayPort

1 x USB 3.2 Gen2 (USB 3.1 Gen2)

1 x USB 3.2 Gen2 Type-C

4 x USB 3.2 Gen1 (USB 3.0)

1 x RJ-45

3 x audio jacks

Dimensions

17 x 17 cm

Mini ITX format
