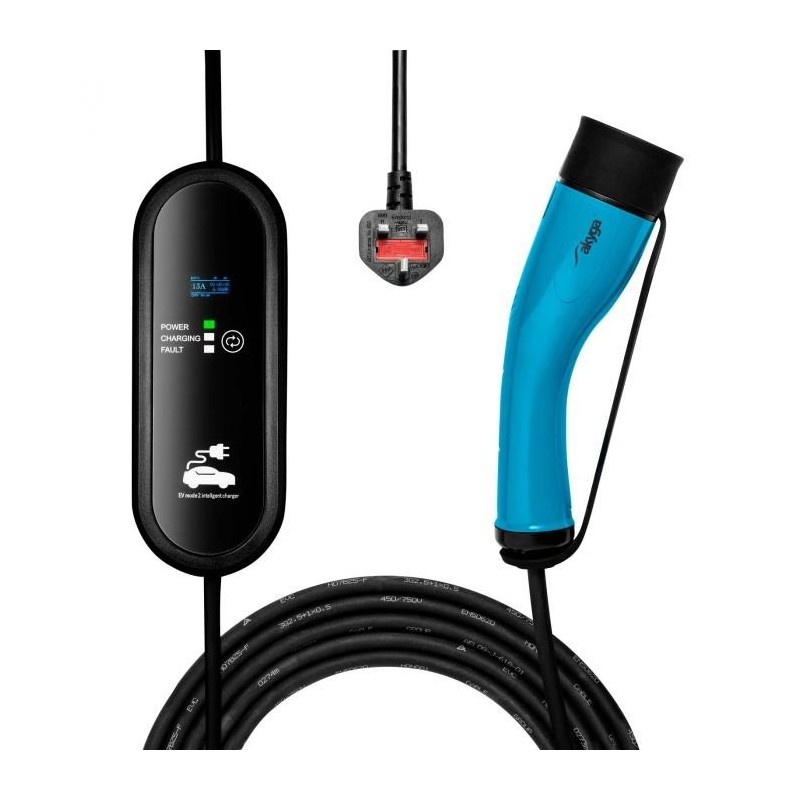

Akyga Power cable for electric vehicles BS 1363 UK / Type2 LCD 1-phase 13A 3kW, 5m

Description

It is equipped with a BS 1363 (G) plug, also known as the British plug, so it is fully compatible with the electrical systems in these countries.

The AK-EC-20 electric vehicle charger is equipped with the popular IEC 62196-2 Type 2 connector, commonly known as Mennekes.
This is the most widespread standard for charging electric vehicles on the European market, making it compatible with almost all available electric vehicles.
The 5-meter cable, which allows easy connection to the power source, ensures additional comfort of use.

The heart of the charger is the ControlBox control panel, which provides information about the current charging status and displays important data on the LCD display, such as charging current, voltage, power consumption, device temperature and charging time.
The device provides adjustable charging current with a choice of 8 A, 10 A and 13 A, allowing adaptation to electrical installation options and vehicle specifications.

The AK-EC-20 charger is designed for efficient operation even in harsh conditions, as confirmed by its IP54 protection.
Its robust construction ensures protection against dirt and moisture, which is essential for safety and long-term use.

Product Type: Electric Car Accessories
Padlock hole: No
Supply voltage: 110-250V / 50/60Hz
Number of phases: 1 phase
Maximum current: 13 A
Maximum power: 3 kW
Grounding: Yes
Flame resistance: UL94V-0
IP rating: IP54

Cable length: 5 m
Cable plug #1: Type G
Plug Cable #2: Type 2 (IEC 62196-2) female connector
Plugs: Silver
Cable material: Copper
Wire cross-section: 3 x 2.5 mm2 + 1 x 0.5 mm2

Packaging:

Size x:43 cm

Dimensions: 40 cm

Size: 9.5 cm

Weight:2.442 kg
